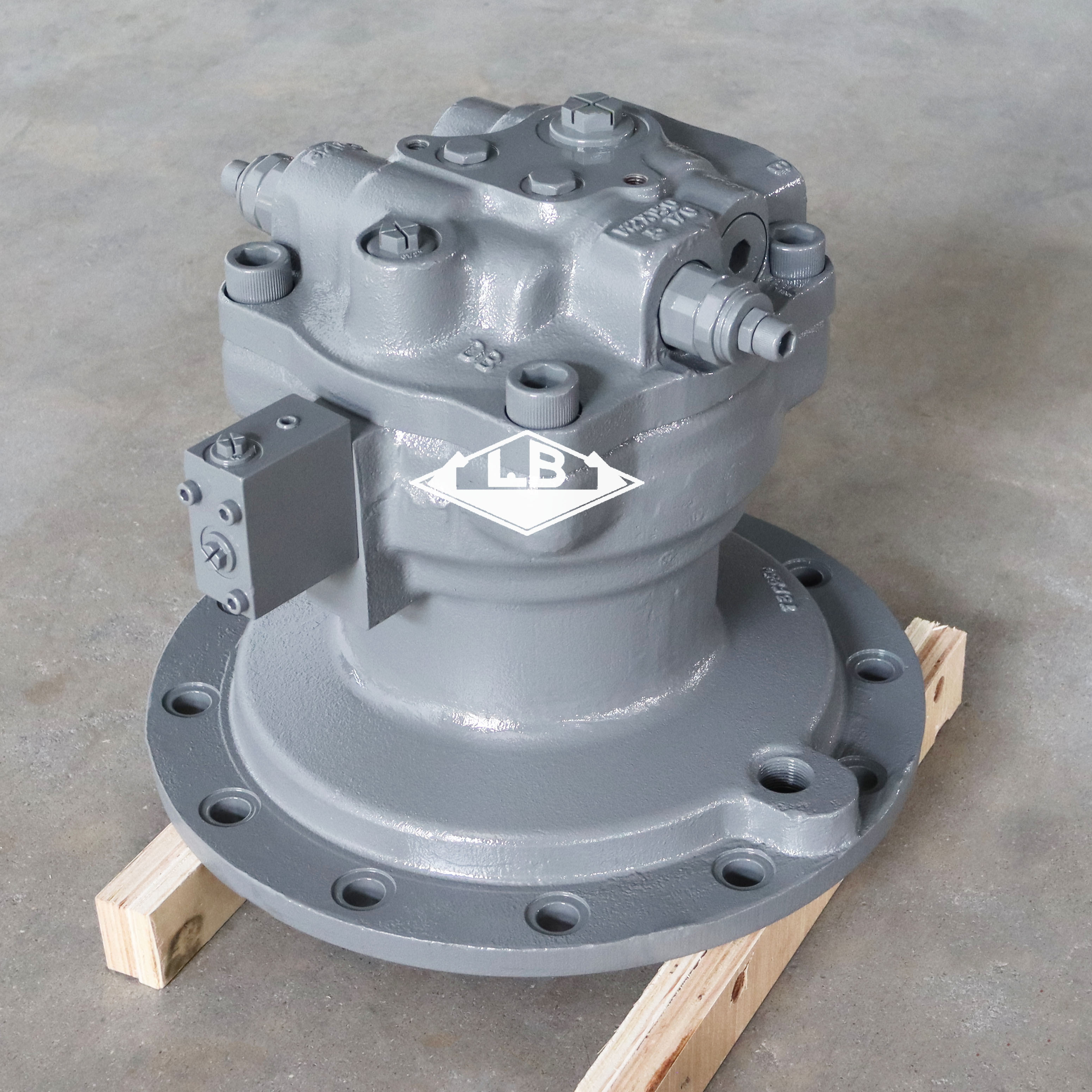

EX200-1 4224991 SWING MOTOR M2X170VAB-10A-01/260 FOR HITACHI EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 EX200-1 swing motor
Equipment Apply to HITACHI  EXCAVATOR
Part no. 4224991
motor shaft teeth
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

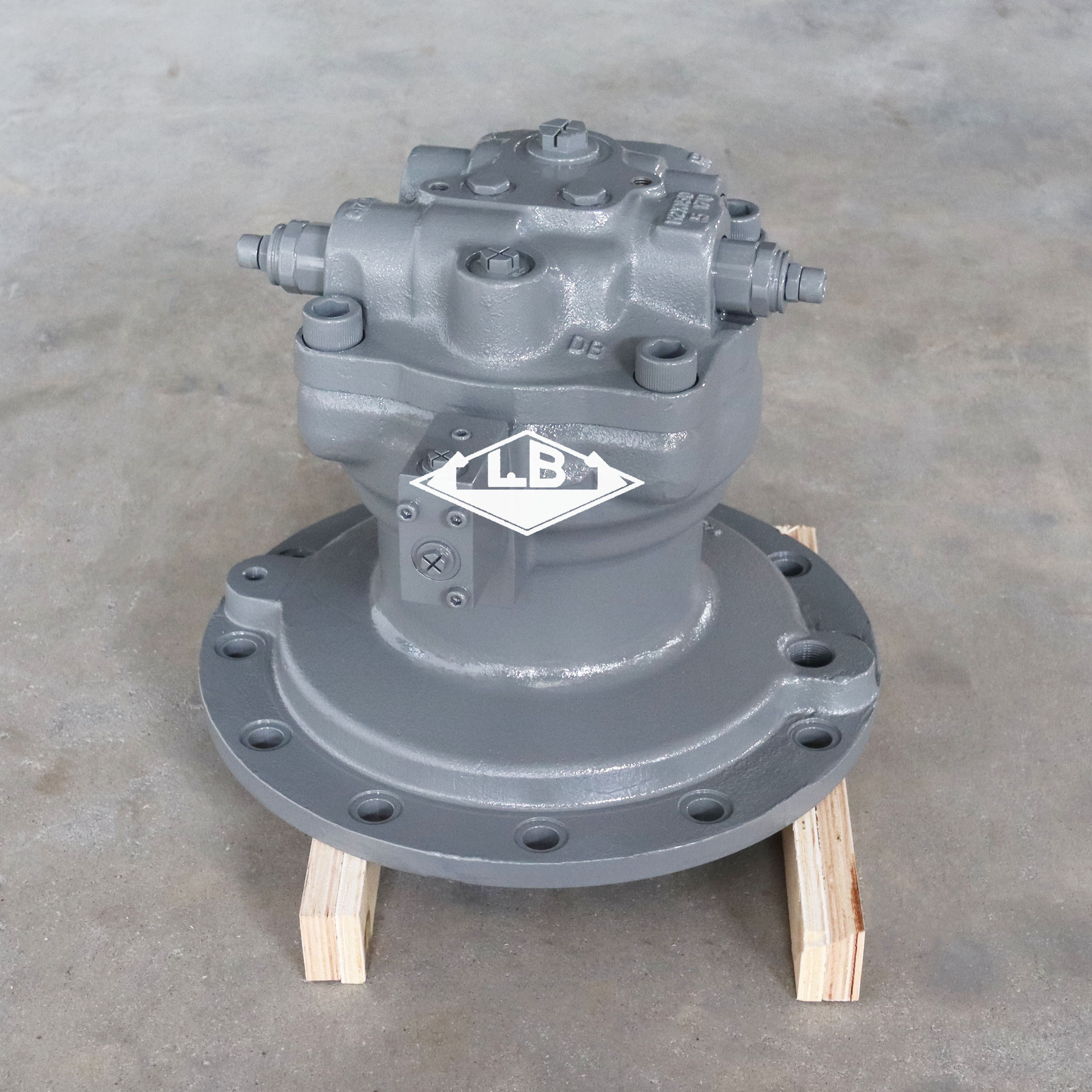

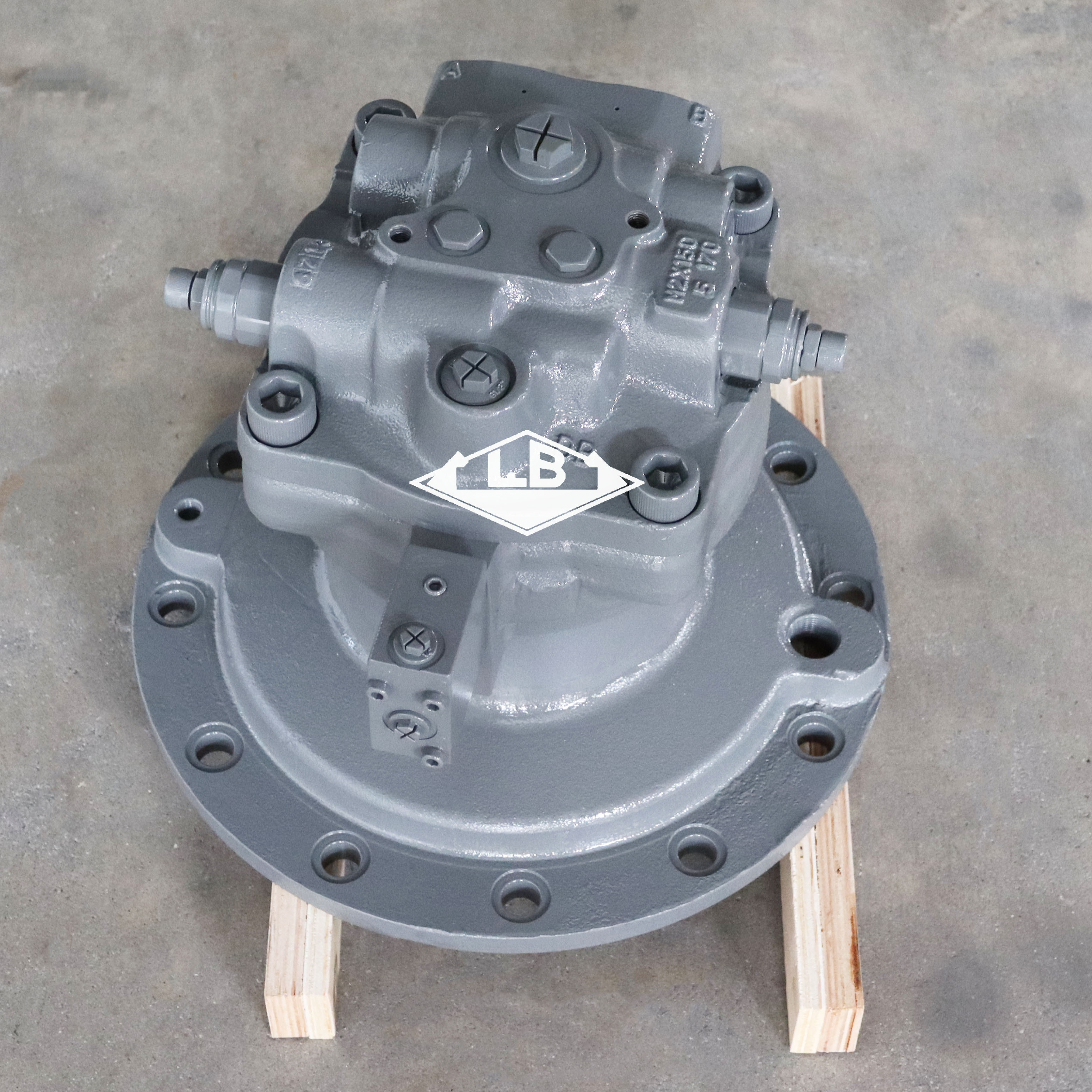

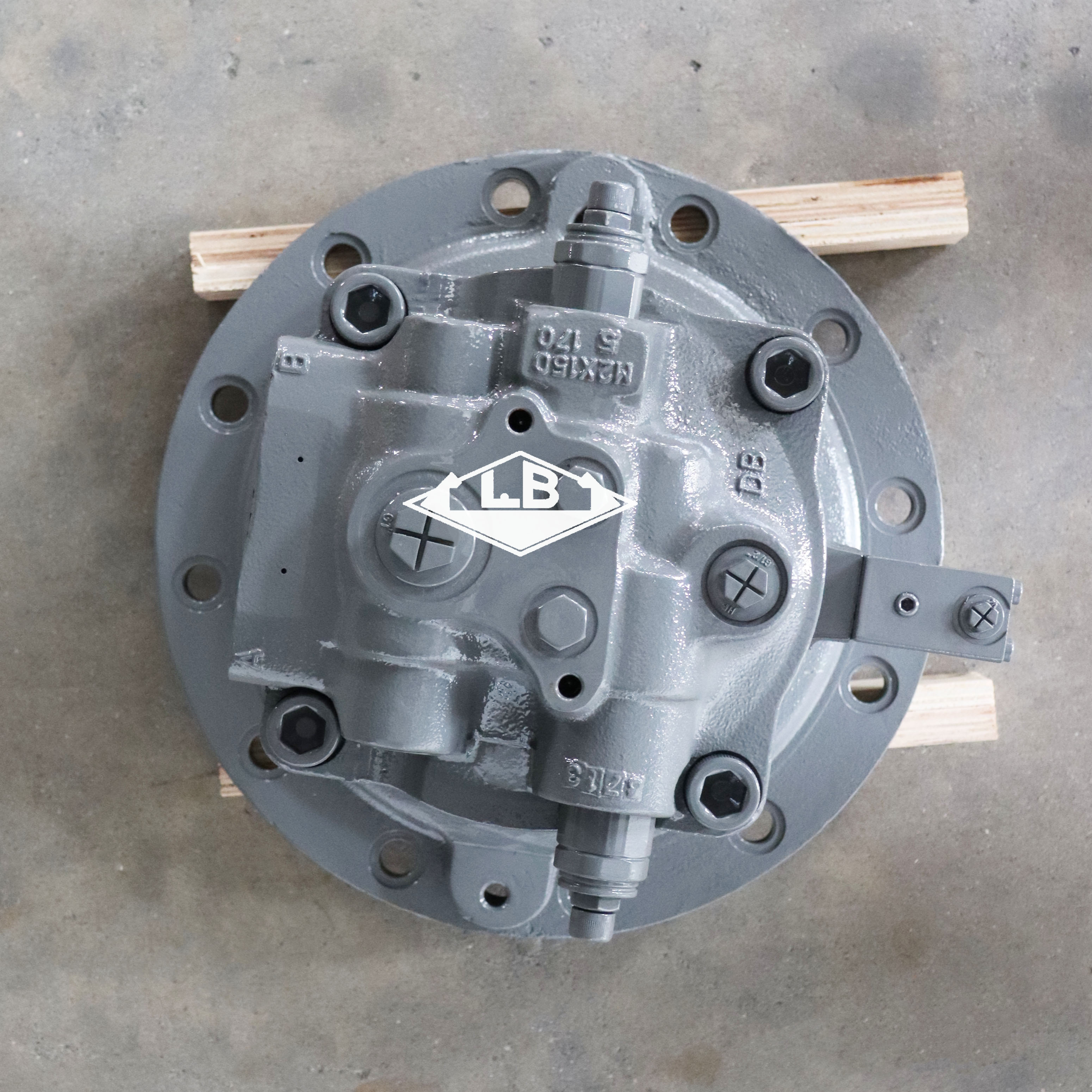

EX200-1 回转马达(4)EX200-1 回转马达(6)EX200-1 回转马达(8)EX200-1 回转马达(2)EX200-1

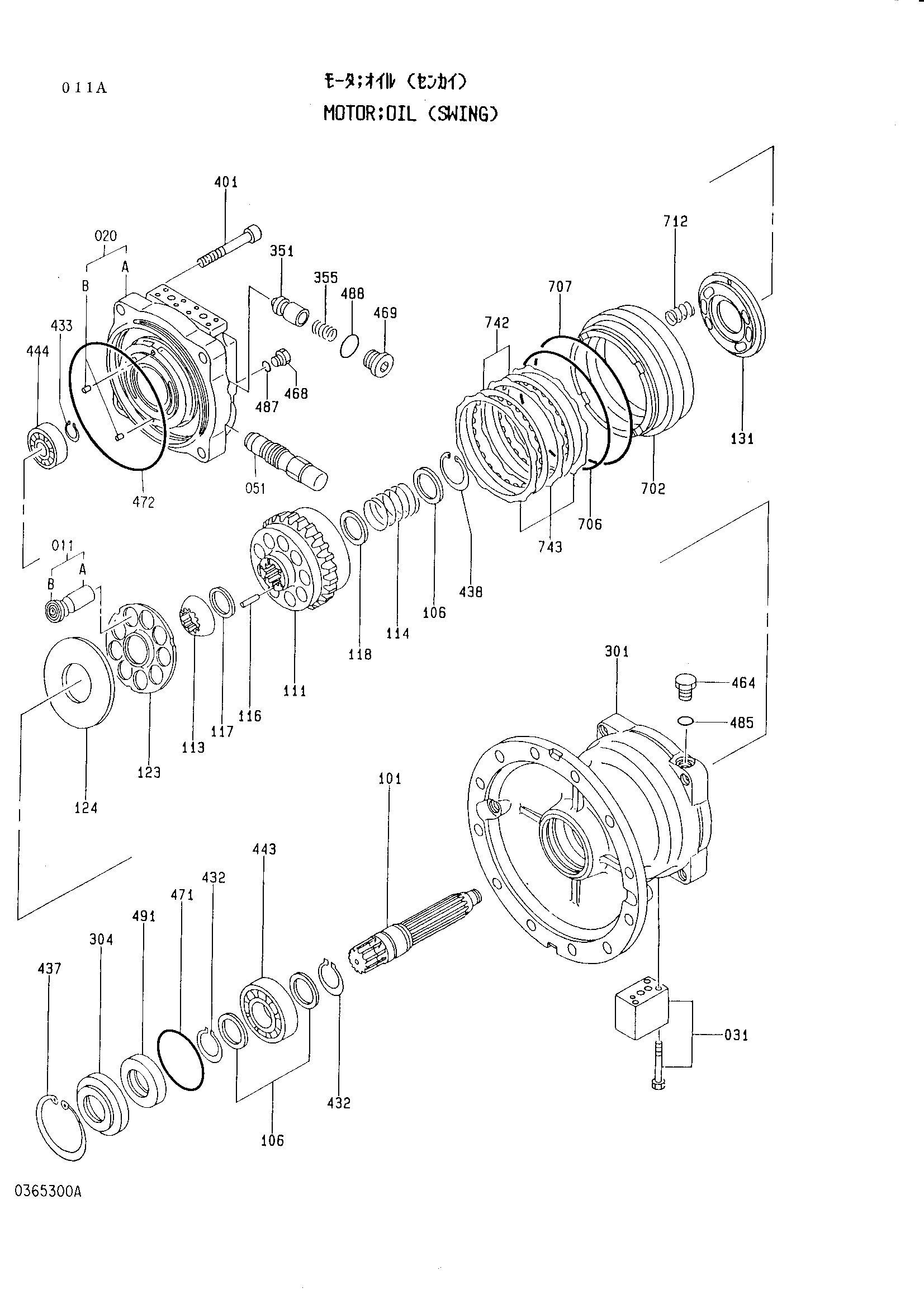

Parts on group OIL MOTOR (SWING):

Pos. Part No Qty Parts name Comments

4224991 [1] MOTOR;OIL 0365300A
011. 0365301 [9] PISTON SUB
011A. +++++++ [1] PISTON
011B. +++++++ [1] SHOE
020. 0365302 [1] CASING SUB
020A. +++++++ [1] CASING
020B. +++++++ [2] PIN
031. 0365303 [1] VALVE SUB
051. 0365304 [2] VALVE;RELIEF
101. 0365305 [1] SHAFT
106. 0365306 [3] SPACER
111. 0365307 [1] CYL.
113. 0365308 [1] BUSHING
114. 0365309 [1] SPRING
116. 0365310 [12] ROD;PUSH
117. 0365311 [1] SPACER
118. 0365312 [1] SPACER
123. 0365313 [1] PLATE
124. 0365314 [1] PLATE
131. 0365315 [1] PLATE
301. 0365316 [1] CASING
304. 0365317 [1] COVER
351. 0236006 [2] PLUNGER
355. 0236009 [2] SPRING
401. 0365318 [4] BOLT;SOCKET
432. 0365319 [2] RING;RETAINING
433. 0365320 [1] RING;RETAINING
437. 0365321 [1] RING;RETAINING
438. 0365322 [1] RING;RETAINING
443. 0365323 [1] BRG.
444. 0365324 [1] BRG.
464. 0236014 [1] PLUG
468. 0236014 [2] PLUG
469. 0236015 [2] PLUG
471. 0365325 [1] O-RING
472. 0365326 [1] O-RING Y 0365334
472. 0365334 [1] O-RING
485. 957366 [1] O-RING
487. 957366 [2] O-RING
488. 0365327 [2] O-RING
491. 0365328 [1] SEAL;OIL
702. 0365329 [1] PISTON;BRAKE
706. 0365330 [1] O-RING
707. 0308623 [1] O-RING
712. 0365331 [20] SPRING;BRAKE
742. 0365332 [2] PLATE
743. 0365333 [3] PLATE
