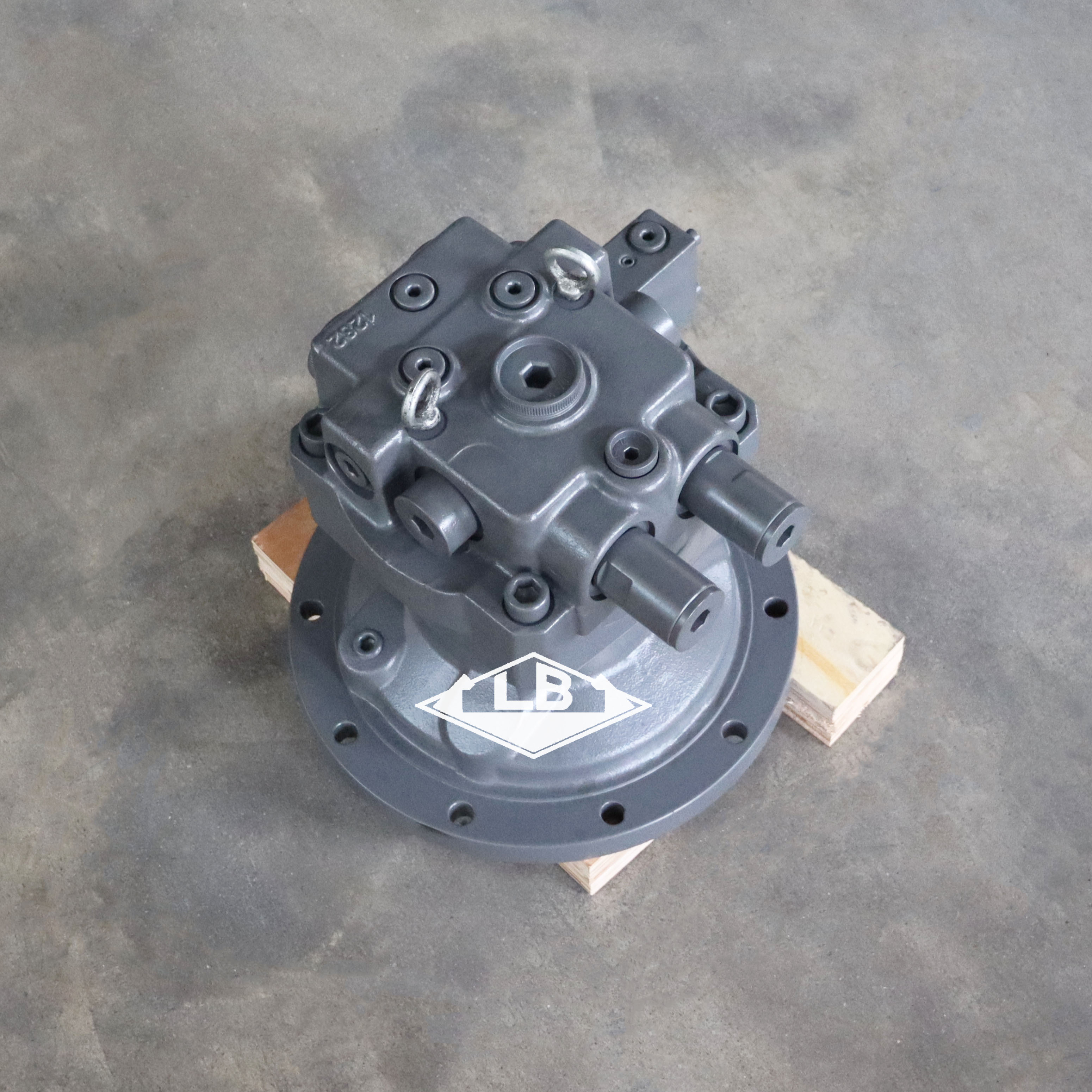

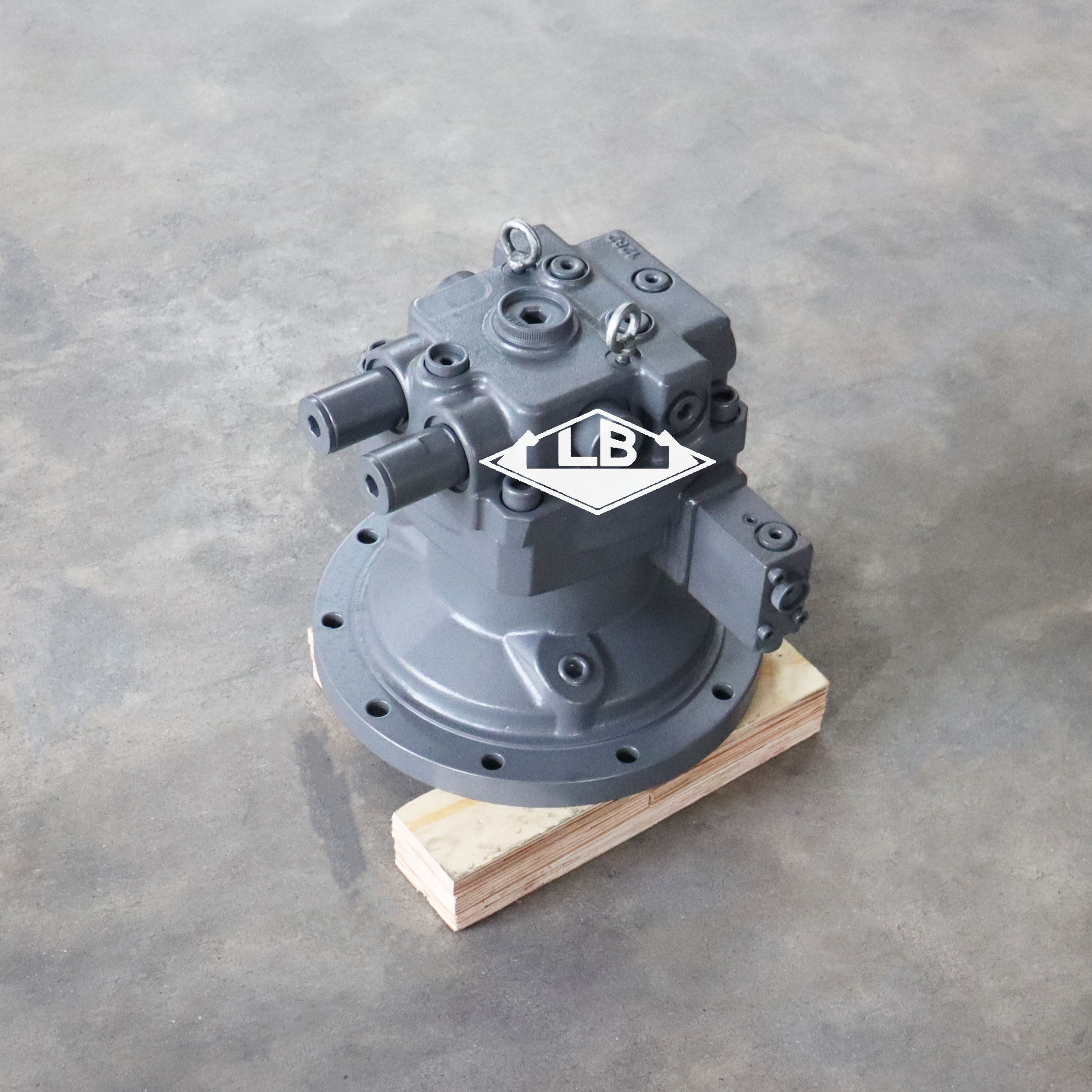

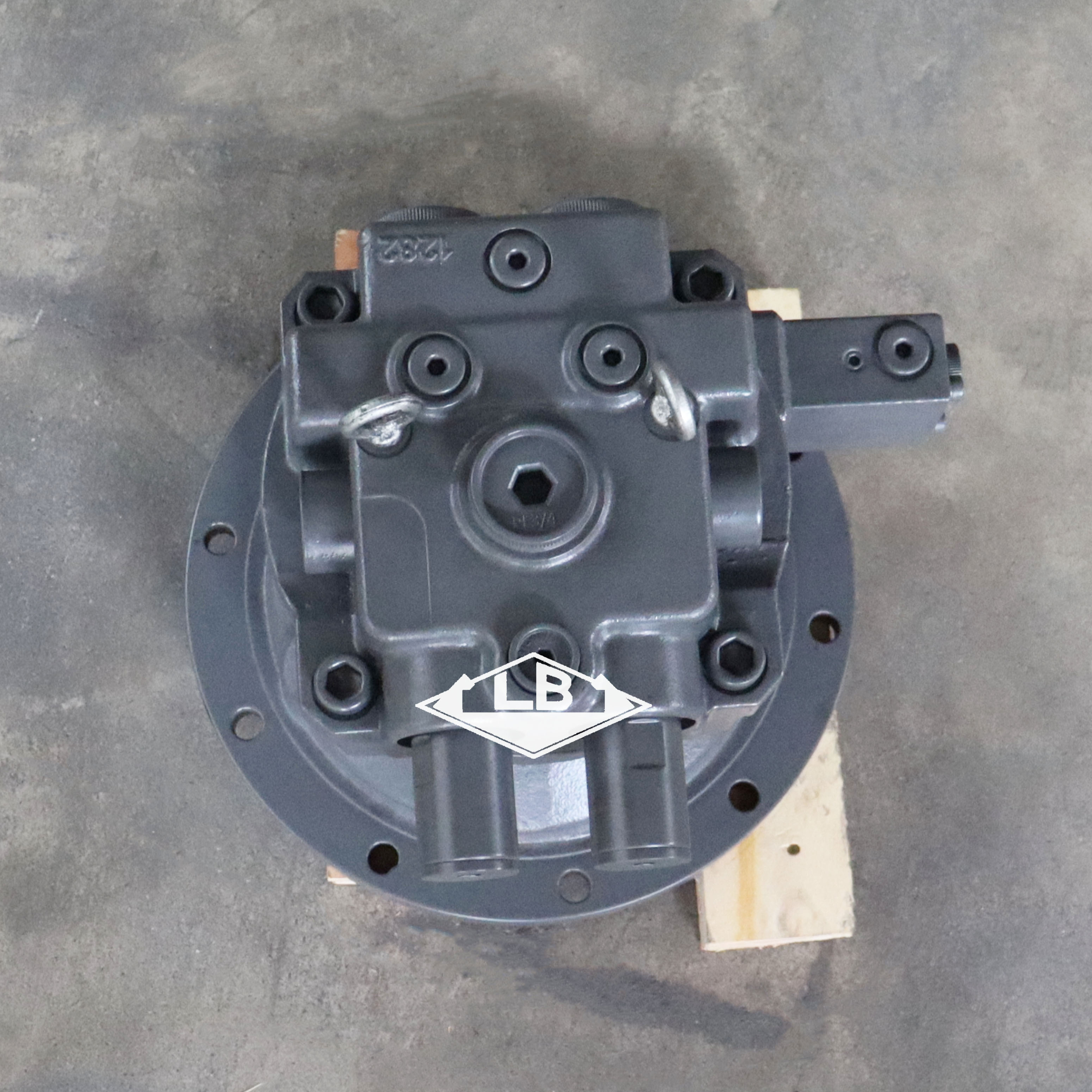

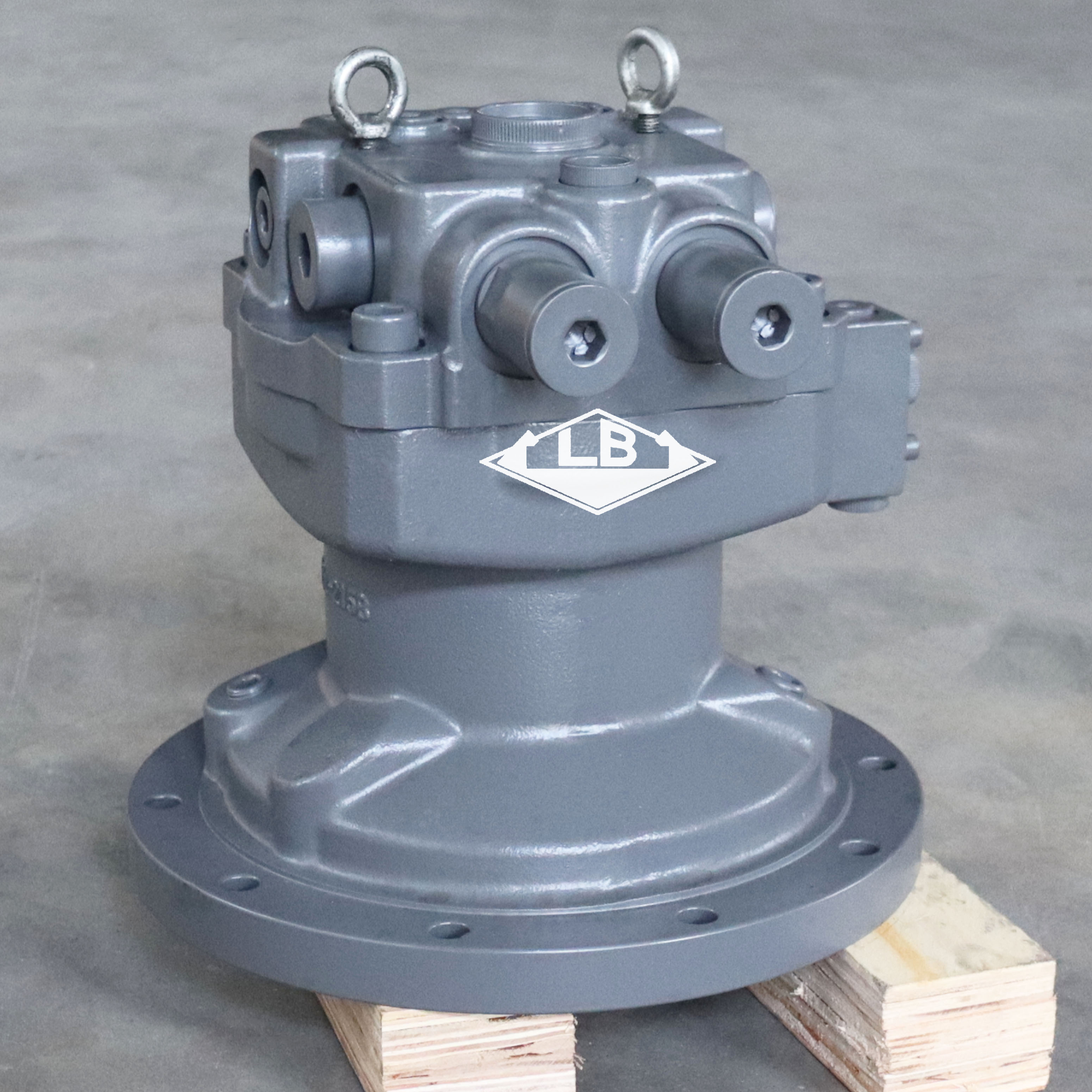

EC160 EC170 EC180 SWING MOTOR VOE14538545 FOR VOLVO EXCAVATOR

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name

EC160 EC170 EC180 swing motor
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14538545
motor shaft teeth
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

EC180回转马达（4）EC180回转马达（6）EC180回转马达（8）EC180回转马达（2）EC180回转马达

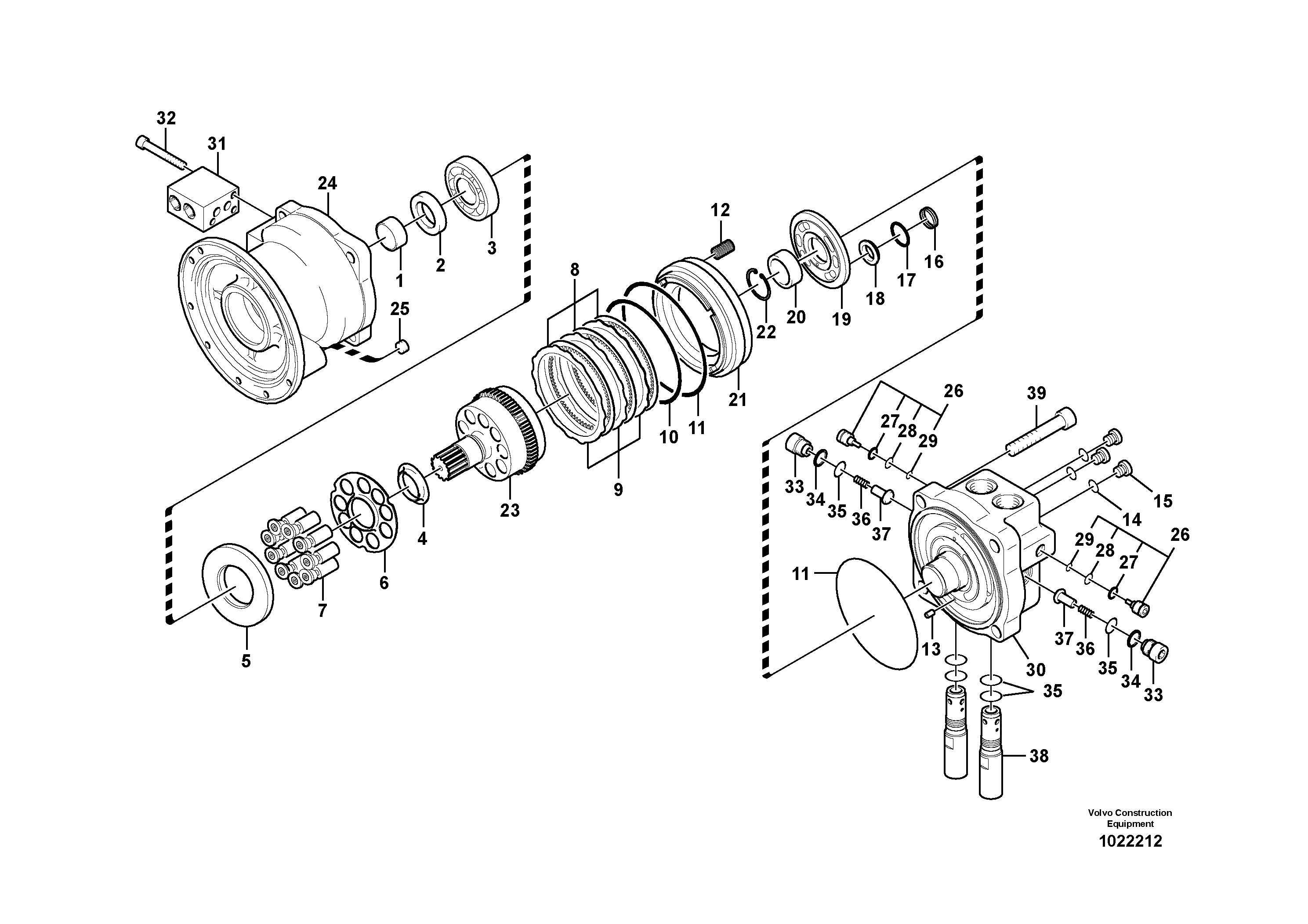

Parts on group Swing motor:

Pos. Part No Qty Parts name Comments

VOE14538545 [1] Swing motor
1. SA8230-04420 [1] Inner race
2. SA8220-15630 [1] Seal
3. SA8230-00790 [1] Roller bearing
4. SA8230-04320 [1] Spring
5. SA8230-04360 [1] Plate
6. SA8230-04410 [1] Plate
7. VOE14519350 [9] Piston
8. SA8230-22900 [3] Plate
9. SA8230-22910 [3] Friction plate
10. SA8230-25140 [1] O-ring
11. SA8230-02411 [2] O-ring
12. SA8230-04230 [10] Spring
13. SA8230-31150 [2] Pin
14. VOE993320 [3] O-ring
15. VOE14552099 [3] Cap
16. SA8230-04240 [4] Spring
17. SA8230-00891 [4] Sealing ring
18. SA8230-04330 [4] Bushing
19. SA8230-03990 [1] Plate
20. SA8230-00820 [1] Needle Bearing
21. VOE14519351 [1] Piston
22. SA8230-01030 [1] Ring
23. VOE14508587 [1] Cylinder
24. VOE14508589 [1] Housing
25. SA8230-23350 [1] Plug
26. VOE14508590 [2] Valve
27. VOE14625246 [1] Ring
28. VOE990557 [1] O-ring
29. VOE983503 [1] O-ring
30. VOE14534867 [1] Cover
31. VOE14534868 [1] Valve
32. SA8230-00610 [3] Bolt
33. SA8230-11610 [2] Cap
34. VOE14880821 [2] Back-up ring
35. VOE983525 [4] O-ring
36. VOE14596241 [2] Spring
37. SA8230-11110 [2] Non-return valve
38. VOE14508592 [2] Relief valve
39. VOE984135 [4] Hex. socket screw
100. VOE14534869 [1] Seal
