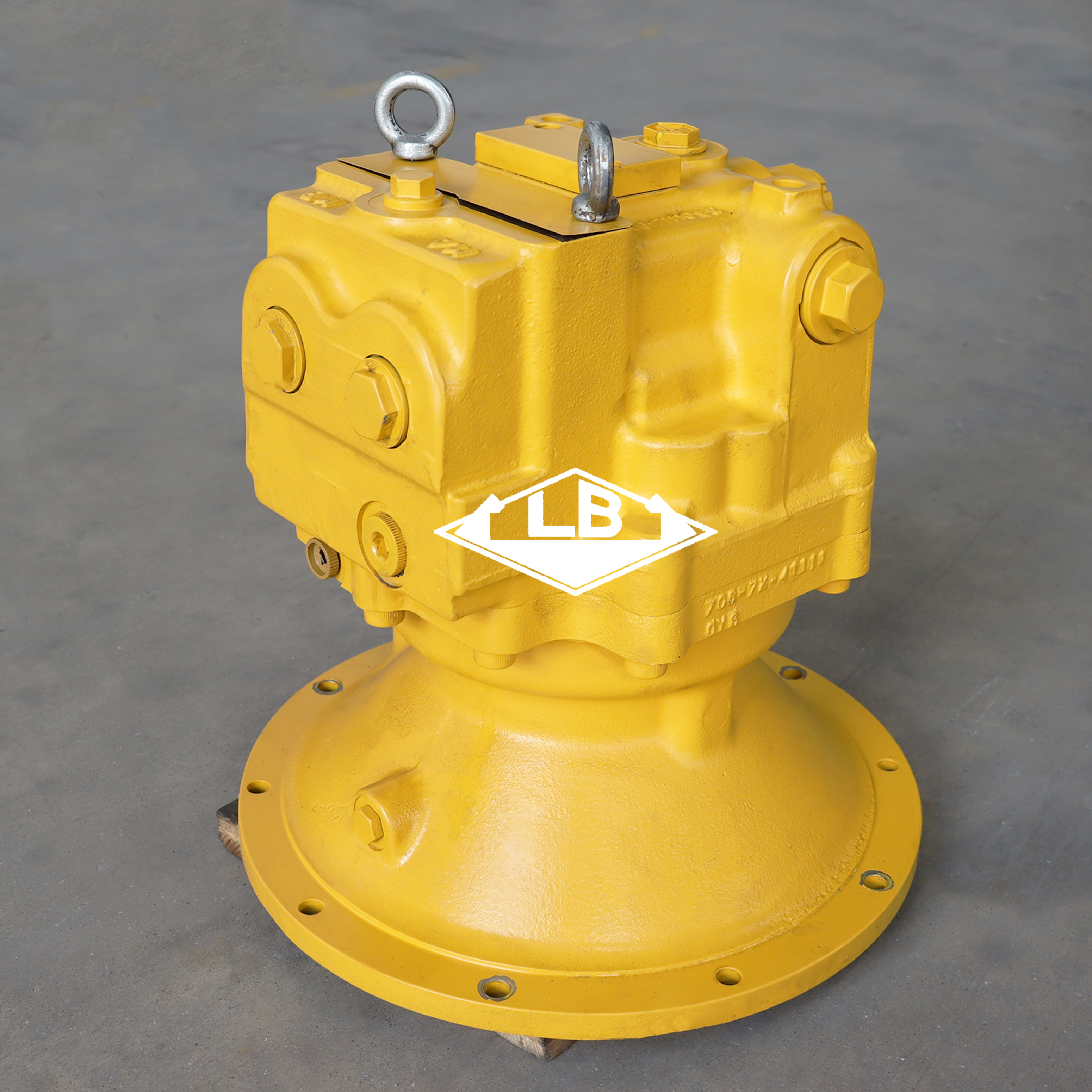

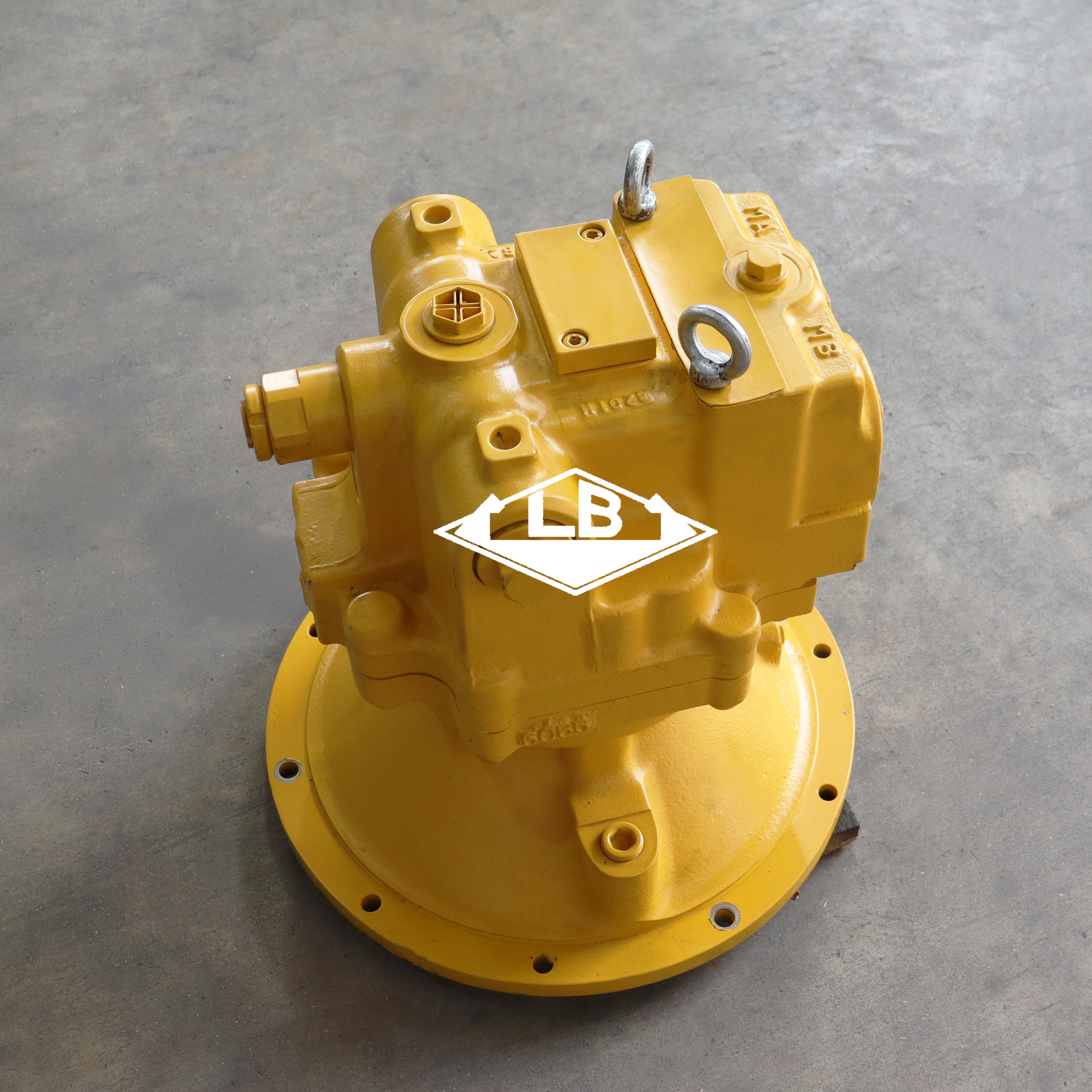

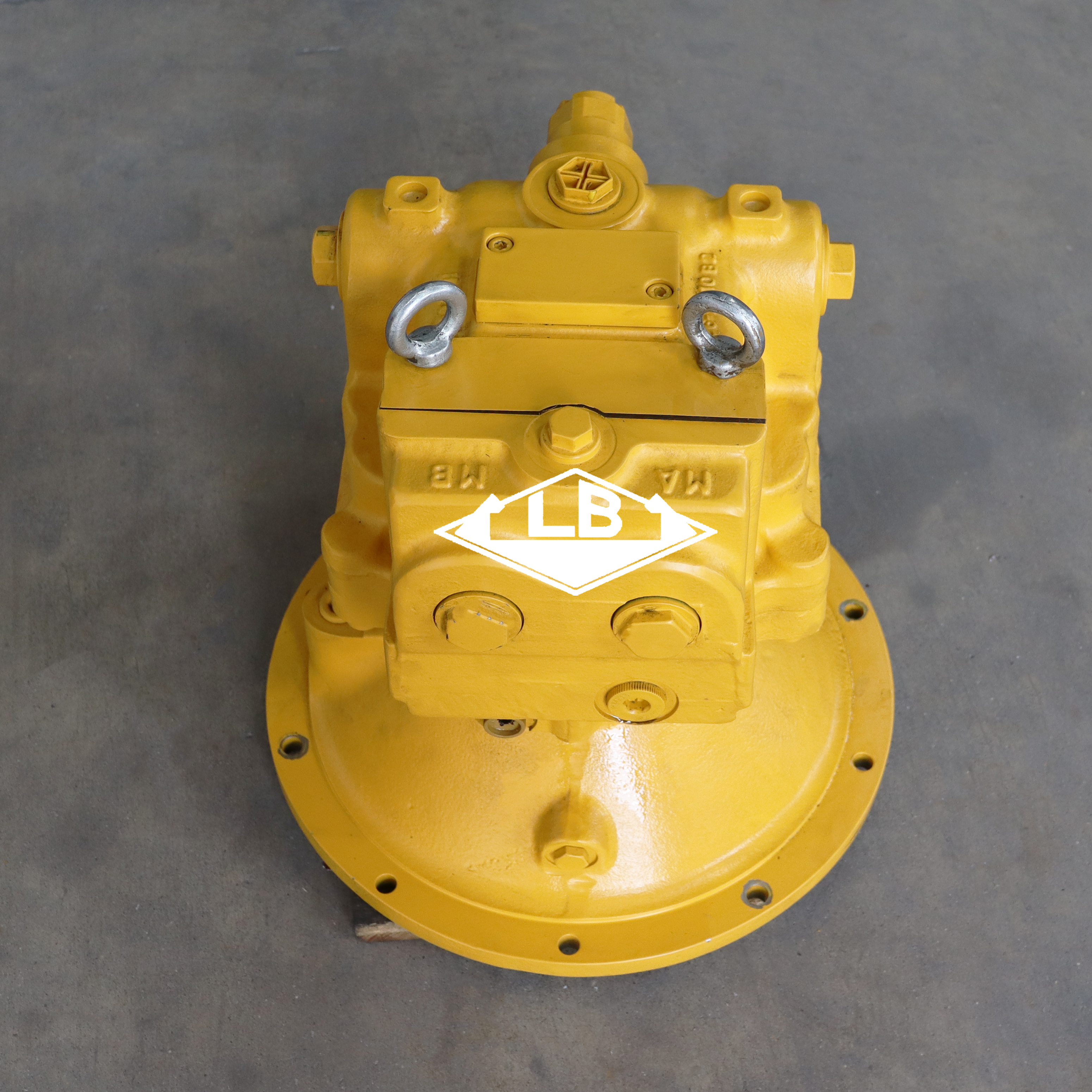

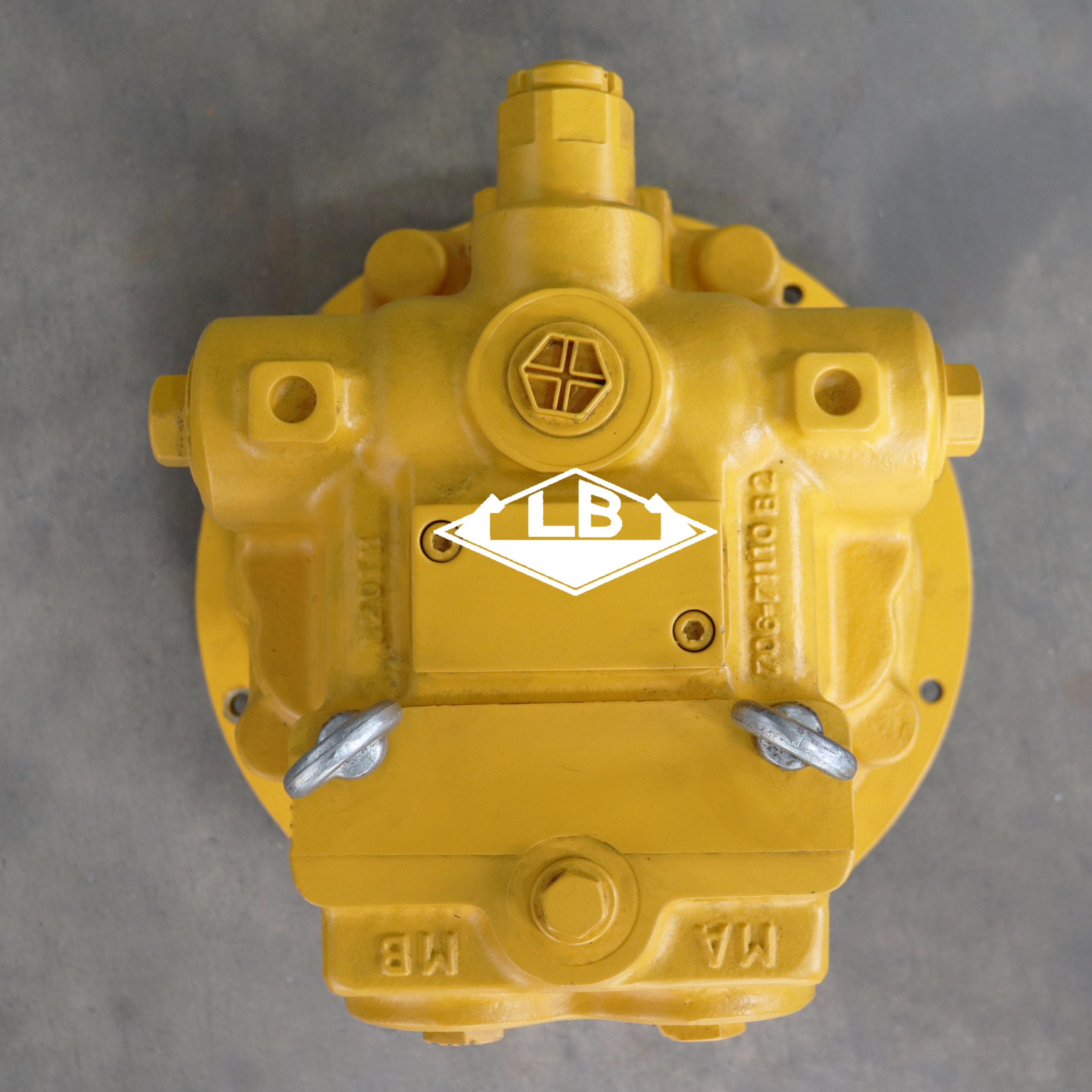

Home / Products / Swing motor / PC1250-8 SWING MOTOR 706-7K-01140 706-7K-01111 706-7K-01110 706-7K-03130 706-7K-03111 706-7K-03110 PC1250-8 SWING MOTOR FOR KOMATSU EXCAVATOR

PC1250-8 SWING MOTOR 706-7K-01140 706-7K-01111 706-7K-01110 706-7K-03130 706-7K-03111 706-7K-03110 PC1250-8 SWING MOTOR FOR KOMATSU EXCAVATOR

Share to:

PC1250-8 SWING MOTOR 706-7K-01140 706-7K-01111 706-7K-01110 706-7K-03130 706-7K-03111 706-7K-03110 PC1250-8 SWING MOTOR FOR KOMATSU EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	PC1250-8 Swing gearbox
Equipment	Apply to KOMATSU EXCAVATOR
Part no.	706-7K-01140 706-7K-01111 706-7K-01110 706-7K-03130 706-7K-03111 706-7K-03110
NO.1 sun gear spline teeth	18 splines
Swing pinion shaft teeth	13 T
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

PC1250-8 回转马达(8) PC1250-8 回转马达(6) PC1250-8 回转马达(4)

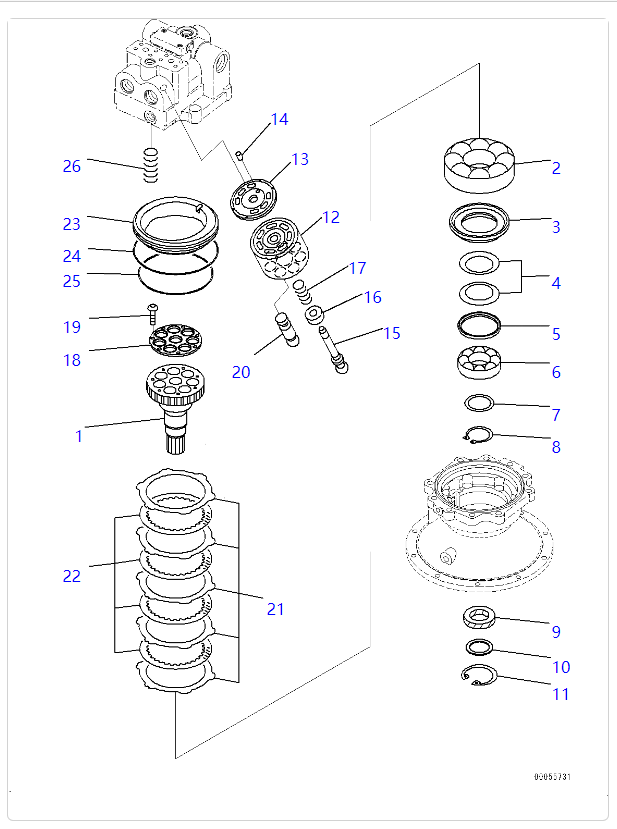

Parts on group :

Pos.	Part No	Qty	Parts name	Comments
	706-7K-01140	[1]	Motor Assembly Komatsu China
			["SN: 30233-UP"] \|$0.
	706-7K-01111	[1]	Motor Assembly Komatsu	120 kg.
			["SN: 30209-30232"] analogs:["7067K01110"] \|$1.
	706-7K-01110	[1]	Motor Assembly Komatsu	120 kg.
			["SN: 30158-30208"] \|$2.
	706-7K-03130	[1]	Motor Subassembly Komatsu China
			["SN: 30233-UP", "SCC: C2"] \|$3.
	706-7K-03111	[1]	Motor Subassembly Komatsu China
			["SN: 30209-30232", "SCC: C2"] \|$4.
	706-7K-03110	[1]	Motor Subassembly Komatsu China
			["SN: 30158-30208", "SCC: C2"] \|$5.
1.	706-7K-41610	[1]	Shaft Komatsu	8.062 kg.
			["SN: 30158-UP", "SCC: C2"]
2.	706-77-43890	[1]	Bearing Komatsu	5.5 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7067743880"]
3.	706-7K-41810	[1]	Spacer Komatsu	0.8 kg.
			["SN: 30158-UP", "SCC: C2"]
4.	706-77-42051	[2]	Spring Komatsu	0.14 kg.
			["SN: 30158-UP", "SCC: C2"]
5.	706-77-42041	[1]	Seat Komatsu	0.1 kg.
			["SN: 30158-UP", "SCC: C2"]
6.	706-77-42890	[1]	Bearing Komatsu	1.185 kg.
			["SN: 30158-UP", "SCC: C2"]
7.	706-77-05070	[1]	Spacer Kit Komatsu China
			["SN: 30233-UP", "SCC: C2"]
7.	706-77-05010	[1]	Spacer Kit Komatsu	0.172 kg.
			["SN: 30158-30232", "SCC: C2"]
8.	04064-06525	[1]	Ring, Snap, for Shaft Side Komatsu China	0.021 kg.
			["SN: 30158-UP", "SCC: C2"]
9.	706-8J-41420	[1]	Seal, Oil Komatsu	0.662 kg.
			["SN: 30158-UP"]
10.	706-7K-41920	[1]	Spacer Komatsu	0.04 kg.
			["SN: 30158-UP"]
11.	04065-07525	[1]	Ring, Snap, for Hole Side Komatsu	0.021 kg.
			["SN: 30158-UP"]
12.	706-7K-41210	[1]	Cylinder Block Komatsu	5.2 kg.
			["SN: 30158-UP", "SCC: C2"]
13.	706-7K-41710	[1]	Plate, Valve Komatsu	0.9 kg.
			["SN: 30158-UP", "SCC: C2"]
14.	708-18-13230	[1]	Pin Komatsu	0.01 kg.
			["SN: 30158-UP", "SCC: C2"]
15.	706-7K-41120	[1]	Shaft,Center Komatsu	0.62 kg.
			["SN: 30158-UP", "SCC: C2"]
16.	706-77-42130	[1]	Ring,Center Komatsu	0.1 kg.
			["SN: 30158-UP", "SCC: C2"]
17.	706-7K-41140	[1]	Spring Komatsu	0.21 kg.
			["SN: 30158-UP", "SCC: C2"]
17.	706-7K-05010	[1]	Retainer Kit Komatsu	0.45 kg.
			["SN: 30158-UP", "SCC: C2"]
20.	706-7K-41160	[7]	Piston Subassembly Komatsu	6.78 kg.
			["SN: 30158-UP", "SCC: C2"]
21.	706-7K-91340	[5]	Plate Komatsu	1 kg.
			["SN: 30158-UP", "SCC: C2"]
22.	706-7K-91350	[4]	Disc Komatsu	0.24 kg.
			["SN: 30158-UP", "SCC: C2"]
23.	706-7K-91111	[1]	Brake Piston Komatsu	3.99 kg.
			["SN: 30158-UP", "SCC: C2"]
24.	07000-B5230	[1]	O-ring Komatsu	0.033 kg.
			["SN: 30158-UP", "SCC: C2"]
25.	706-86-90290	[1]	O-ring Komatsu	0.038 kg.
			["SN: 30158-UP", "SCC: C2"]
26.	706-7K-91360	[6]	Spring Komatsu	0.17 kg.
			["SN: 30158-UP", "SCC: C2"]
