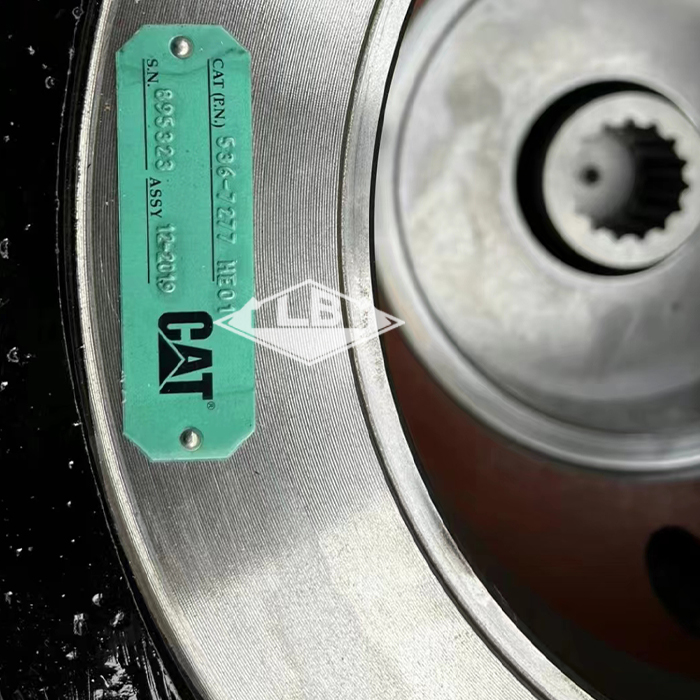

CAT Original NEW CAT374F CAT374D FINAL DRIVE 513-0384 513-0387 513-0833 513-0836 315-4480 CAT 374 TRAVEL GEARBOX

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	CAT 374 Travel gearbox
Equipment	Apply to CAT EXCAVATOR
Part no.	513-0834 513-0837
Frame holes	--
Sprocket holes	--
Item condition	New
Logo	LB
Gross weight	730 KG
MOQ	1 pc

Product Description

E374F(4) E374F(3) E374F(2) E374F

Parts for your 374F EXCAVATOR:

Pos.	Part No	Qty	Parts name
1.	7Y-0808 B	[1]	SHIM (1.6-MM THK)
2.	7Y-1469	[1]	COUPLING
3.	7Y-1493	[1]	SPACER (8.7X50X14-MM THK)
4.	136-2920	[1]	COVER
5.	136-2921	[1]	GEAR-SUN (22-TEETH)
6.	136-2922	[1]	GEAR-SUN (19-TEETH)
7.	136-2923	[1]	GEAR-SUN (20-TEETH)
8.	136-2924	[3]	GEAR-PLANETARY (31-TEETH)
9.	136-2925	[3]	GEAR-PLANETARY (23-TEETH)
10.	136-2926	[4]	GEAR-PLANETARY (22-TEETH)
11.	136-2927	[1]	GEAR-RING (86-TEETH)
12.	136-2928	[1]	GEAR-RING (68-TEETH)
13.	136-2930	[1]	CARRIER-PLANETARY
14.	136-2932	[3]	SHAFT-PLANETARY
15.	136-2933	[4]	SHAFT-PLANETARY
16.	136-2934	[1]	CARRIER AS
	136-2931	[3]	SHAFT-PLANETARY
17.	136-2943	[1]	RING-RETAINING
18.	136-2945	[1]	SPACER (203X233X8.5-MM THK)
19.	136-2947	[1]	CARRIER-PLANETARY
20.	136-2948	[6]	PIN-DOWEL
21.	136-2949	[1]	GEAR-COUPLING (83-TEETH)
22.	199-4728	[1]	HOUSING (SPROCKET)
23.	214-7880	[1]	SEAL GP-DUO-CONE
	214-7879	[2]	RING-TORIC
24.	451-2178	[18]	WASHER-HARD (33X56X6-MM THK)
25.	452-3523	[1]	HOUSING-MOTOR
26.	453-4193 M	[18]	BOLT (M30X3.5X260-MM)
27.	094-0584	[6]	WASHER (40.3X72X1-MM THK)
28.	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)
29.	099-5194	[7]	PIN-SPRING
30.	136-2944	[2]	SPACER (61X95.1X10-MM THK)
31.	136-2946	[3]	BEARING-CAGED
32.	136-2959 B	[1]	SHIM (0.3-MM THK)
	136-2962 B	[1]	SHIM (0.6-MM THK)
	136-2963 B	[1]	SHIM (0.7-MM THK)
	136-2964 B	[1]	SHIM (0.8-MM THK)
	136-2965 B	[1]	SHIM (1-MM THK)
	136-2966 B	[1]	SHIM (1.6-MM THK)
37.	163-1656	[2]	CONE-SPECIAL TAPERED
38.	163-1657	[2]	CUP-SPECIAL TAPERED
40.	136-2967	[1]	SEAL-O-RING
41.	3E-2338	[2]	PLUG-PIPE
42.	4I-7576	[14]	WASHER (66.3X104X3-MM THK)
43.	7M-8485	[2]	SEAL-O-RING
44.	7Y-0667	[1]	RING-RETAINING
45.	7Y-0912	[11]	BEARING AS-ROLLER
46.	173-9683 M	[10]	BOLT (M30X3.5X90-MM)
47.	8T-3957 M	[12]	BOLT-SOCKET HEAD (M12X1.75X30-MM)
48.	8T-4240	[3]	RING-RETAINING
