| Quantity: | |
|---|---|
| Part name | R800-9 FINAL DRIVE | |||||
| Equipment | Apply to HYUNDAI EXCAVATOR | |||||
| Part no. | 31ND-40040 | |||||
| Frame holes | -- | |||||
| Sprocket holes | -- | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||

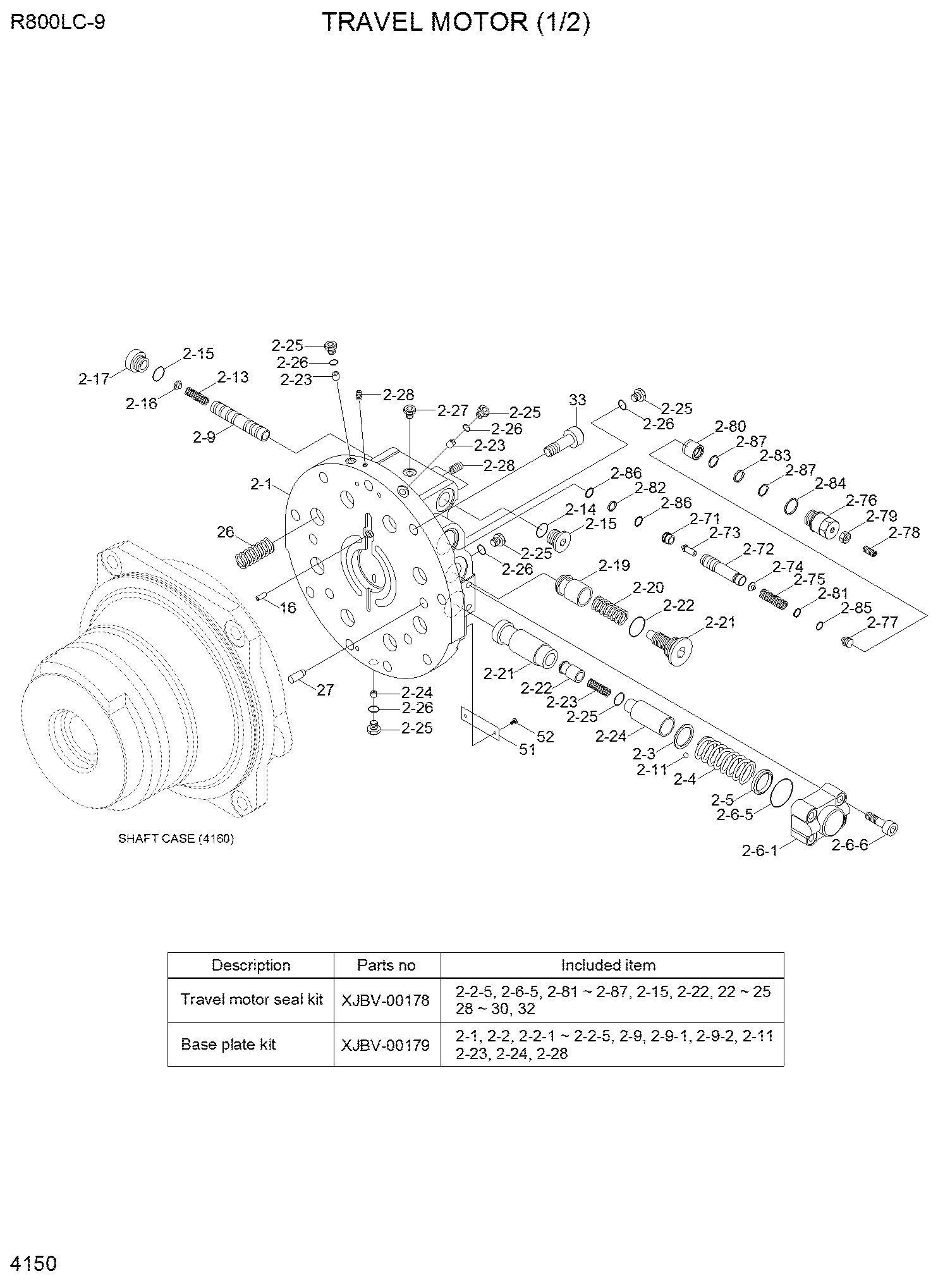

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | TRAVEL MOTOR | *-1, *-2 |
| *-1. | 31ND-40040 | [1] | TRAVEL MOTOR | |
| N2. | XJBV-00132 | [1] | PLATE ASSY-BASE | |
| NK2-1. | XJBV-00133 | [1] | PLATE-BASE | |
| NK2-2. | XJBV-00134 | [1] | SPOOL ASSY | |
| NK2-21. | XJBV-00135 | [1] | SPOOL | |
| K2-22. | XJBV-00035 | [2] | VALVE-CHECK | |
| K2-23. | XJBV-00036 | [2] | SPRING | |
| NK2-24. | XJBV-00136 | [2] | PLUG | |
| K2-25. | XJAA-00040 | [2] | O-RING | |
| 2-3. | XJBV-00137 | [2] | SEAT-SPRING | |
| 2-4. | XJBV-00138 | [2] | SPRING | |
| 2-5. | XJBV-00139 | [2] | SEAT-SPRING | |
| 2-6. | XJBV-00140 | [2] | CAP ASSY | |
| N2-6-1. | XJBV-00141 | [1] | CAP | |
| K2-6-5. | XJBV-00142 | [1] | O-RING | |
| N2-6-6. | XJBV-00143 | [4] | BOLT | |
| 2-7. | XJBV-00144 | [2] | VALVE ASSY-RELIEF | |
| N2-7-1. | XJBV-00145 | [1] | SEAT-POPPET | |
| N2-7-2. | XJBV-00146 | [1] | HOUSING-RELIEF | |
| N2-7-3. | XJBV-00147 | [1] | POPPET | |
| N2-7-4. | XJBV-00148 | [1] | SEAT-SPRING | |
| N2-7-5. | XJBV-00149 | [1] | SPRING | |
| N2-7-6. | XJBV-00150 | [1] | PLUG | |
| N2-7-7. | XJBV-00151 | [1] | GUIDE-SPRING | |
| N2-7-8. | XJBV-00152 | [1] | SCREW-SET | |
| N2-7-9. | XJBV-00153 | [1] | NUT | |
| N2-80. | XJBV-00154 | [1] | PISTON-FREE | |
| K2-81. | XJBV-00033 | [1] | O-RING | |
| K2-82. | XJBV-00155 | [1] | O-RING | |
| K2-83. | XJBV-00029 | [1] | O-RING | |
| K2-84. | XJAA-00075 | [1] | O-RING | |
| K2-85. | XJBV-00034 | [1] | RING-BACK UP | |
| K2-86. | XJBV-00156 | [2] | RING-BACK UP | |
| K2-87. | XJBV-00157 | [2] | RING-BACK UP | |
| K2-9. | XJBV-00158 | [1] | VALVE ASSY | |
| K2-9-1. | XJBV-00159 | [1] | SPOOL | NOT SHOWN |
| K2-9-2. | XJBV-00160 | [1] | SPOOL-C | NOT SHOWN |
| K2-11. | XJBV-00161 | [2] | ORIFICE | |
| 2-13. | XJBV-00162 | [1] | SPRING | |
| 2-14. | XJBV-00163 | [1] | PLUG | |
| K2-15. | XJBV-00155 | [2] | O-RING | |
| 2-16. | XJBV-00164 | [1] | GUIDE-SPRING | |
| 2-17. | XJBV-00165 | [1] | PLUG | |
| 2-19. | XJBV-00166 | [2] | VALVE-CHECK | |
| 2-20. | XJBV-00167 | [2] | SPRING | |
| 2-21. | XJBV-00168 | [2] | PLUG | |
| K2-22. | XJBV-00066 | [2] | O-RING | |
| NK2-23. | XJBV-00169 | [2] | ORIFICE | |
| NK2-24. | XJBV-00170 | [1] | ORIFICE | |
| 2-25. | XJBV-00041 | [6] | PLUG | |
| 2-26. | XJBV-00042 | [6] | O-RING | |
| 2-27. | XJBV-00171 | [1] | PLUG-SHIPPING | |
| K2-28. | XJBV-00172 | [7] | PLUG | |
| 16. | XJBV-00173 | [1] | PIN | |
| 26. | XJBV-00174 | [10] | SPRING | |
| 27. | XJBV-00175 | [4] | PIN | |
| 33. | XJBV-00176 | [9] | BOLT-SOCKET | |
| N51. | XJBV-00177 | [1] | PLATE-NAME | |
| N52. | XJBV-00180 | [2] | SCREW-DRIVE | |
| K. | XJBV-00178 | [1] | SEAL KIT | SEE ILLUST |
| K. | XJBV-00179 | [1] | BASE PLATE KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
我们的终传动产品专为各种重型机械设备设计，采用先进的制造工艺，确保了卓越的性能表现。具体技术参数如下：齿轮类型为行星齿轮，拥有高扭矩输出能力；速比可根据客户需求定制，适用于不同工作环境；最大输入转速可达每分钟数千转，保证了高效的动力传输；产品重量适中，便于安装与维护；紧凑的设计使得它能在有限的空间内发挥出最大的效能。
无论是用于建筑施工的挖掘机，还是农田作业的拖拉机，甚至是矿山开采中的装载机，我们的终传动都能展现出非凡的实力。它不仅适用于传统燃油驱动的设备，同样也能与现代电动机械设备无缝对接，满足不同行业对动力系统的需求。
选用高强度合金钢作为核心部件的原材料，经过精密锻造及多次热处理工序，使得每个零件都具备极高的强度与韧性。表面处理采用了特殊的防腐蚀技术，即使在恶劣环境下也能保持长久的使用寿命。
凭借优秀的机械设计与先进的生产流程，本款终传动在效率方面达到了行业领先水平。它不仅能够有效减少能量损耗，还能大幅降低运行过程中的噪音水平，为操作人员创造更舒适的工作环境。
随产品附赠详细的安装手册，指导用户快速完成组装调试工作。日常维护只需按照推荐周期进行简单检查与润滑即可，极大地节省了后期保养成本。
考虑到市场上主流品牌的多样化需求，我们特别针对不同品牌和型号进行了优化设计，确保本款终传动能够与市面上大多数工程机械实现完美匹配。
每一台出厂前都经过严格的质量检测，符合ISO国际质量管理体系标准，并获得了CE安全认证，让用户在选购时更加放心。
众多国内外知名企业已经将我们的终传动应用于他们的机械设备中，并给予了高度评价。例如，某大型矿企在其挖掘机改造项目中选择了我们的产品后，显著提升了工作效率。
