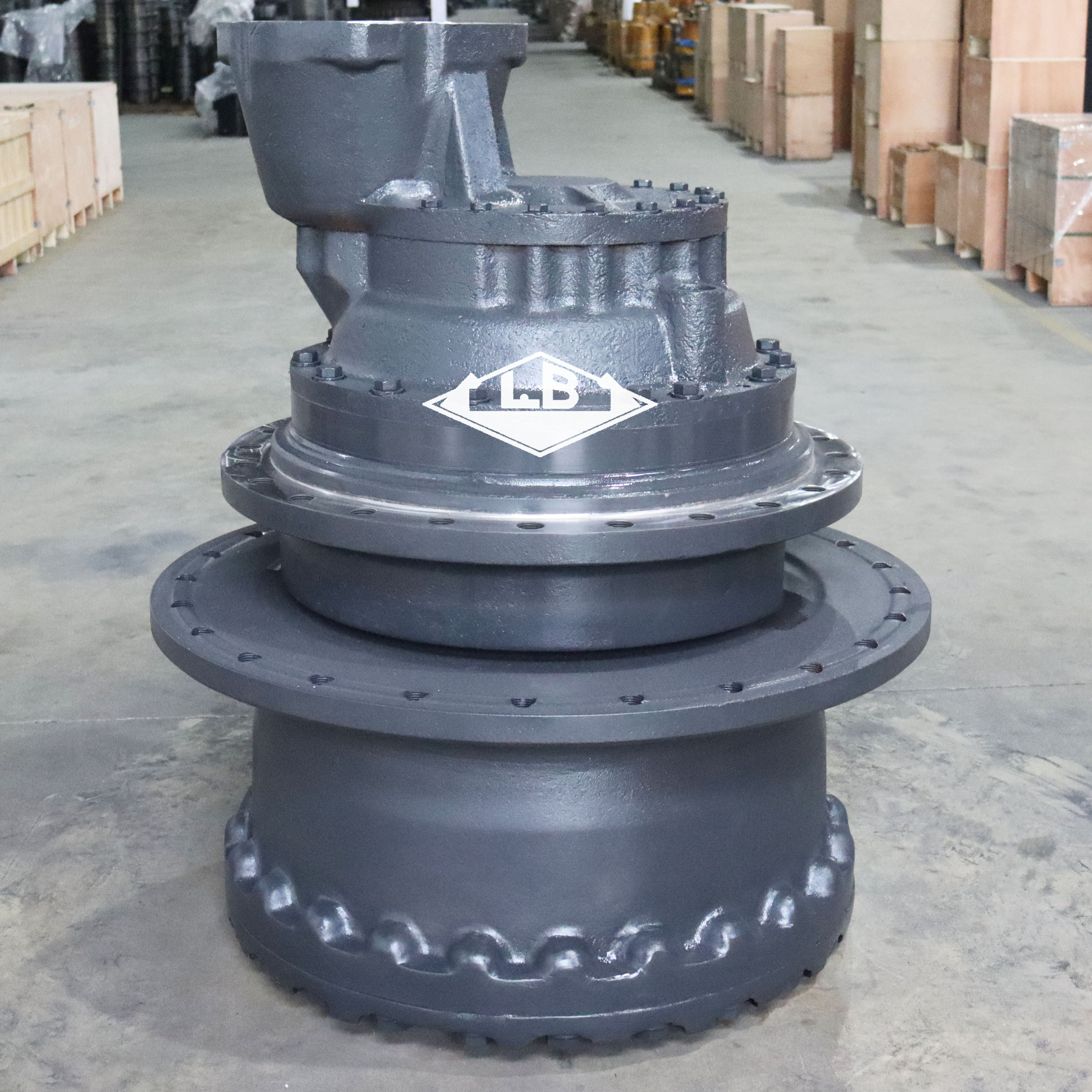

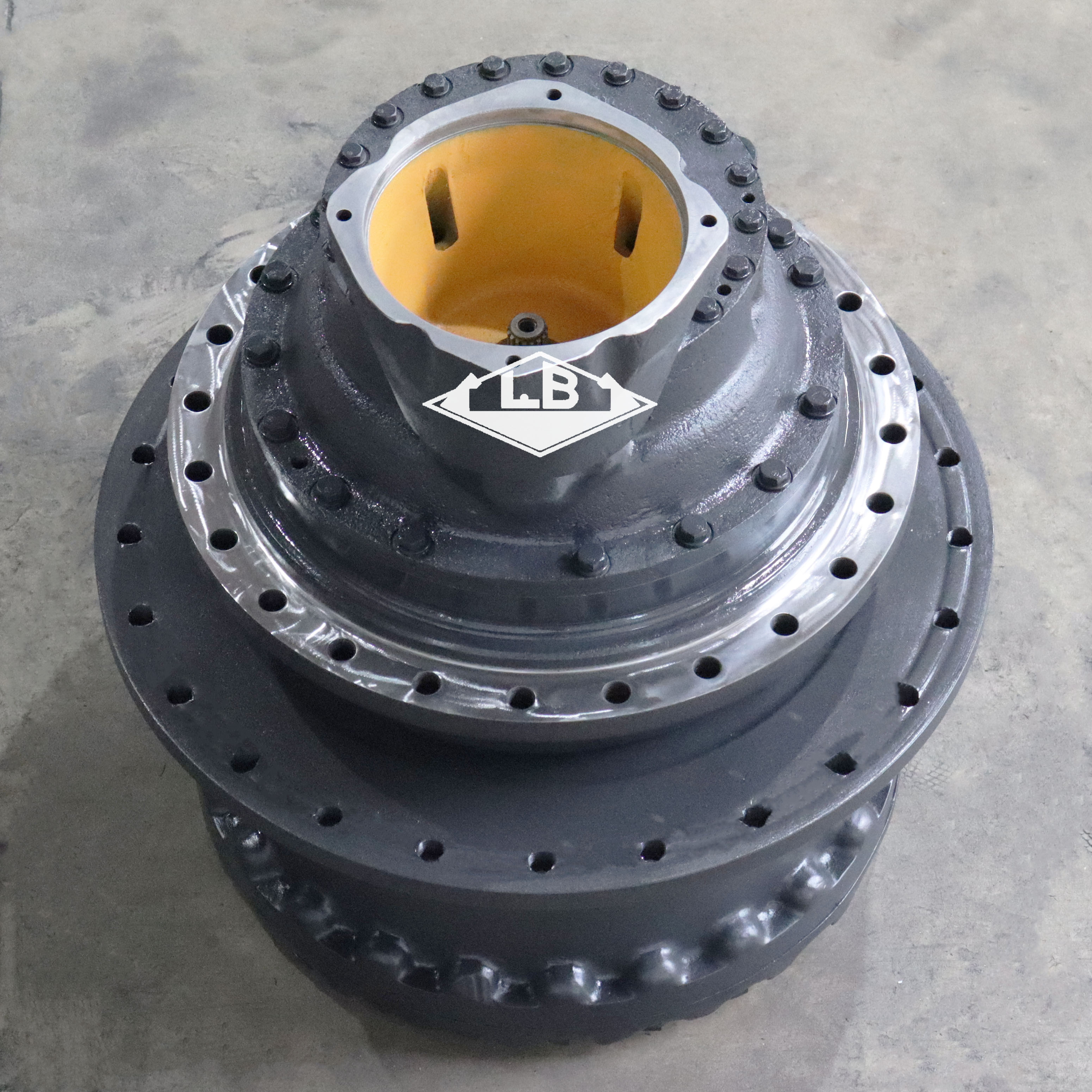

PC2000-8 Final Drive 21T-27-00410 706-7L-01110 21T-27-00300 TRAVEL GEARBOX for Komatsu PC2000LC-8

Availability:
Quantity:
Inquire Add to Basket

PRODUCT PARAMETERS
Part name
 PC2000-8 Travel gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 21T-27-00410 706-7L-01110 21T-27-00300
Frame holes --
Sprocket holes --
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

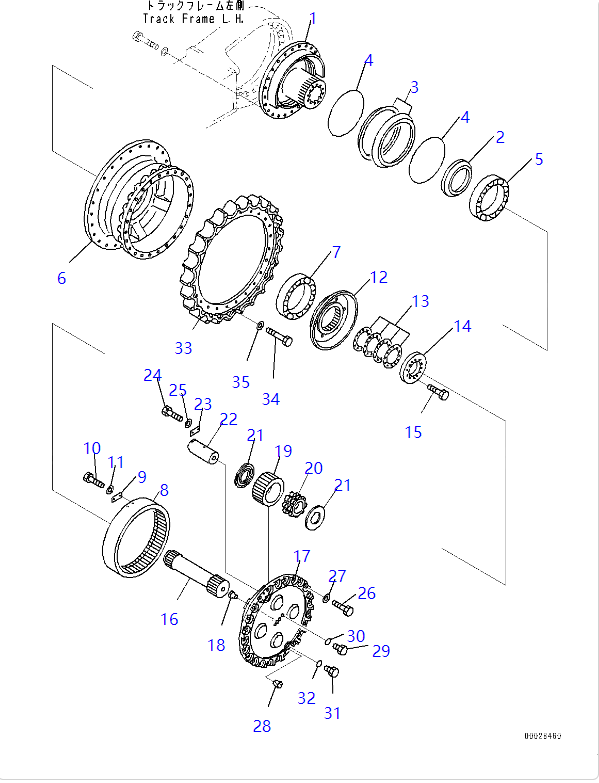

PC2000行走牙箱(6)PC2000行走牙箱(4)PC2000行走牙箱(8)PC2000行走牙箱(2)PC2000(1)

Parts on group :

Pos. Part No Qty Parts name Comments

21T-27-00300 [1] Final Drive Assembly Komatsu 3060 kg.

["SN: 20196-UP"] |$0.
1. 21T-27-71142 [1] Housing Komatsu 469 kg.

["SN: 20196-UP"]
2. 21T-27-71421 [1] Retainer Komatsu 16 kg.

["SN: 20196-UP"]
2. 198-27-00034 [1] Floating Seal Assembly Komatsu 10.5 kg.

["SN: 20196-UP"] analogs:["1982700031", "1982700033", "1982700032"]
5. 21T-27-11330 [1] Bearing Komatsu 70 kg.

["SN: 20196-UP"] analogs:["5682212940", "5612262970", "5612262990"]
6. 21T-27-71151 [1] Case Komatsu 767 kg.

["SN: 20196-UP"]
8. 21T-27-71311 [1] Gear Komatsu 134 kg.

["SN: 20196-UP"]
9. 209-27-21270 [6] Lock Komatsu China

["SN: 20196-UP"]
10. 01010-81230 [12] Bolt Komatsu 0.043 kg.

["SN: 20196-UP"] analogs:["0101051230", "01010B1230"]
11. 01643-31232 [12] Washer Komatsu 0.027 kg.

["SN: 20196-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
12. 21T-27-71321 [1] Housing Komatsu China

["SN: 20196-UP"]
13. 21T-27-00070 [1] Shim Komatsu 1.46 kg.

["SN: 20196-UP"]
14. 21T-27-71330 [1] Retainer Komatsu 21.55 kg.

["SN: 20196-UP"]
15. 01010-82465 [10] Bolt Komatsu 0.341 kg.

["SN: 20196-UP"] analogs:["0101062465", "0101032465", "0101052465"]
16. 21T-27-71280 [1] Shaft Komatsu 82 kg.

["SN: 20196-UP"]
17. 21T-27-71164 [1] Carrier Komatsu 292 kg.

["SN: 20196-UP"]
18. 205-27-71360 [1] Button Komatsu 0.125 kg.

["SN: 20196-UP"]
19. 21T-27-71290 [4] Gear Komatsu 29 kg.

["SN: 20196-UP"]
20. 21T-27-71390 [4] Bearing Komatsu China

["SN: 20196-UP"]
21. 198-27-11420 [8] Washer, Thrust Komatsu 0.875 kg.

["SN: 20196-UP"]
22. 21T-27-71440 [4] Pin Komatsu China

["SN: 20196-UP"]
23. 04082-00616 [4] Lock Komatsu 0.88 kg.

["SN: 20196-UP"]
24. 01010-81640 [8] Bolt Komatsu 0.264 kg.

["SN: 20196-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
25. 01643-31645 [8] Washer Komatsu 0.072 kg.

["SN: 20196-UP"] analogs:["802170005", "0164301645"]
26. 01010-83080 [24] Bolt Komatsu 0.673 kg.

["SN: 20196-UP"] analogs:["0101063080"]
27. 01643-33080 [24] Washer Komatsu China 0.132 kg.

["SN: 20196-UP"]
28. 07049-03038 [2] Plug, Cork Komatsu 0.214 kg.

["SN: 20196-UP"]
29. 07040-11007 [1] Plug Komatsu 0.014 kg.

["SN: 20196-UP"]
30. 07002-11023 [1] O-ring Komatsu China 0.025 kg.

["SN: 20196-UP"] analogs:["0700201023"]
31. 07044-13620 [2] Plug Komatsu 0.496 kg.

["SN: 20196-UP"] analogs:["0704403620"]
32. 07002-13634 [2] O-ring Komatsu China 0.013 kg.

["SN: 20196-UP"] analogs:["0700203634"]
33. 21T-27-71175 [1] Sprocket Komatsu 269.4 kg.

["SN: 20196-UP"] analogs:["21T2771173", "21T2771174"]
34. 21T-27-11890 [25] Bolt Komatsu 1.2 kg.

["SN: 20196-UP"]
35. 01643-33380 [25] Washer Komatsu 0.166 kg.

["SN: 20196-UP"]

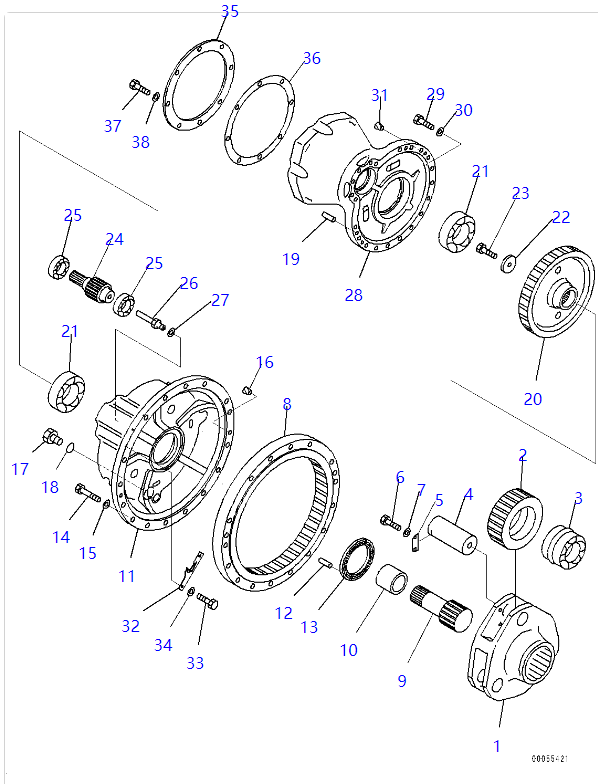

PC2000(2)

Parts on group :

Pos. Part No Qty Parts name Comments

21T-27-00300   [1] Final Drive Assembly Komatsu 3060 kg.

["SN: 20196-UP"] |$0.
1. 21T-27-71270   [1] Carrier Komatsu 65 kg.

["SN: 20196-UP"]
2. 21T-27-71250   [3] Gear Komatsu 16 kg.

["SN: 20196-UP"]
3. 21T-27-71380   [3] Bearing Komatsu 6.9 kg.

["SN: 20196-UP"]
4. 21T-27-71430   [3] Pin Komatsu 4.767 kg.

["SN: 20196-UP"]
5. 209-27-51450   [3] Lock Komatsu China

["SN: 20196-UP"]
6. 01010-81230   [6] Bolt Komatsu 0.043 kg.

["SN: 20196-UP"] analogs:["0101051230", "01010B1230"]
7. 01643-31232   [6] Washer Komatsu 0.027 kg.

["SN: 20196-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
8. 21T-27-72260   [1] Gear Komatsu 127.8 kg.

["SN: 20196-UP"]
9. 21T-27-71241   [1] Shaft Komatsu 10.9 kg.

["SN: 20196-UP"]
10. 21T-27-71230   [1] Spacer Komatsu 2.5 kg.

["SN: 20196-UP"]
11. 21T-27-72130   [1] Case Komatsu China

["SN: 20196-UP"]
12. 04020-00616   [1] Pin, Dowel Komatsu 0.004 kg.

["SN: 20196-UP"]
13. 21T-27-11540   [1] Washer Komatsu 1.6 kg.

["SN: 20196-UP"]
14. 01011-82015   [16] Bolt Komatsu 0.346 kg.

["SN: 20196-UP"] analogs:["0101183015", "0101162015", "0101152015", "0104142015", "0101163015"]
15. 01643-32060   [16] Washer Komatsu China 0.044 kg.

["SN: 20196-UP"] analogs:["802170007", "0164322045", "0164302045"]
16. 07049-02025   [2] Plug Komatsu 0.002 kg.

["SN: 20196-UP"]
17. 07044-13620   [1] Plug Komatsu 0.496 kg.

["SN: 20196-UP"] analogs:["0704403620"]
18. 07002-13634   [1] O-ring Komatsu China 0.013 kg.

["SN: 20196-UP"] analogs:["0700203634"]
19. 04020-01638   [2] Pin, Dowel Komatsu 0.064 kg.

["SN: 20196-UP"]
20. 21T-27-72210   [1] Gear Komatsu 38.1 kg.

["SN: 20196-UP"]
21. 06044-00221   [2] Bearing Komatsu 4.62 kg.

["SN: 20196-UP"]
22. 21T-27-71220   [1] Holder Komatsu 0.43 kg.

["SN: 20196-UP"]
23. 01010-81650   [1] Bolt Komatsu China 0.113 kg.

["SN: 20196-UP"] analogs:["0101061650", "0101051650", "0101031650"]
24. 21T-27-72190   [1] Shaft Komatsu 4.3 kg.

["SN: 20196-UP"]
25. 21T-27-72180   [2] Bearing Komatsu 1.7 kg.

["SN: 20196-UP"]
26. 209-27-51470   [1] Nipple Komatsu China

["SN: 20196-UP"]
27. 01643-31032   [1] Washer Komatsu 0.054 kg.

["SN: 20196-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
28. 21T-27-72120   [1] Case Komatsu China

["SN: 20196-UP"]
29. 01010-81665   [21] Bolt Komatsu 0.134 kg.

["SN: 20196-UP"] analogs:["0101051665", "0101031665", "0101061665", "R0101081665"]
30. 01643-31645   [21] Washer Komatsu 0.072 kg.

["SN: 20196-UP"] analogs:["802170005", "0164301645"]
31. 07049-01620   [2] Plug Komatsu 0.002 kg.

["SN: 20196-UP"]
32. 21T-27-72530   [1] Plate Komatsu China

["SN: 20196-UP"]
33. 01010-81025   [2] Bolt Komatsu 0.36 kg.

["SN: 20196-UP"] analogs:["0101051025", "0101651025", "801015109"]
35. 21N-27-31320   [1] Cover Komatsu China

["SN: 20196-UP"]
36. 21N-27-31330   [1] Gasket Komatsu 0.5 kg.

["SN: 20196-UP"]
37. 01010-81845   [4] Bolt Komatsu 0.14 kg.

["SN: 20196-UP"] analogs:["0101061845", "0101031845", "0101051845", "R0101081845"]
38. 01643-31845   [4] Washer Komatsu China 0.02 kg.

["SN: 20196-UP"] analogs:["0164321845", "R0164331845"]

Company Information


1 (2)

产品特性 - 特定规格与技术参数

我们的终传动产品专为各种重型机械设备设计，采用先进的制造工艺，确保了卓越的性能表现。具体技术参数如下：齿轮类型为行星齿轮，拥有高扭矩输出能力；速比可根据客户需求定制，适用于不同工作环境；最大输入转速可达每分钟数千转，保证了高效的动力传输；产品重量适中，便于安装与维护；紧凑的设计使得它能在有限的空间内发挥出最大的效能。

应用场景 - 广泛适用性

无论是用于建筑施工的挖掘机，还是农田作业的拖拉机，甚至是矿山开采中的装载机，我们的终传动都能展现出非凡的实力。它不仅适用于传统燃油驱动的设备，同样也能与现代电动机械设备无缝对接，满足不同行业对动力系统的需求。

材质与工艺 - 高品质材料及精细制作

选用高强度合金钢作为核心部件的原材料，经过精密锻造及多次热处理工序，使得每个零件都具备极高的强度与韧性。表面处理采用了特殊的防腐蚀技术，即使在恶劣环境下也能保持长久的使用寿命。

性能优势 - 高效稳定的工作表现

凭借优秀的机械设计与先进的生产流程，本款终传动在效率方面达到了行业领先水平。它不仅能够有效减少能量损耗，还能大幅降低运行过程中的噪音水平，为操作人员创造更舒适的工作环境。

安装与维护 - 简单快捷的操作指南

随产品附赠详细的安装手册，指导用户快速完成组装调试工作。日常维护只需按照推荐周期进行简单检查与润滑即可，极大地节省了后期保养成本。

兼容性 - 多种机型轻松匹配

考虑到市场上主流品牌的多样化需求，我们特别针对不同品牌和型号进行了优化设计，确保本款终传动能够与市面上大多数工程机械实现完美匹配。

质量认证 - 国际标准严格把关

每一台出厂前都经过严格的质量检测，符合ISO国际质量管理体系标准，并获得了CE安全认证，让用户在选购时更加放心。

客户评价与案例研究 - 实际应用中的优秀表现

众多国内外知名企业已经将我们的终传动应用于他们的机械设备中，并给予了高度评价。例如，某大型矿企在其挖掘机改造项目中选择了我们的产品后，显著提升了工作效率。
