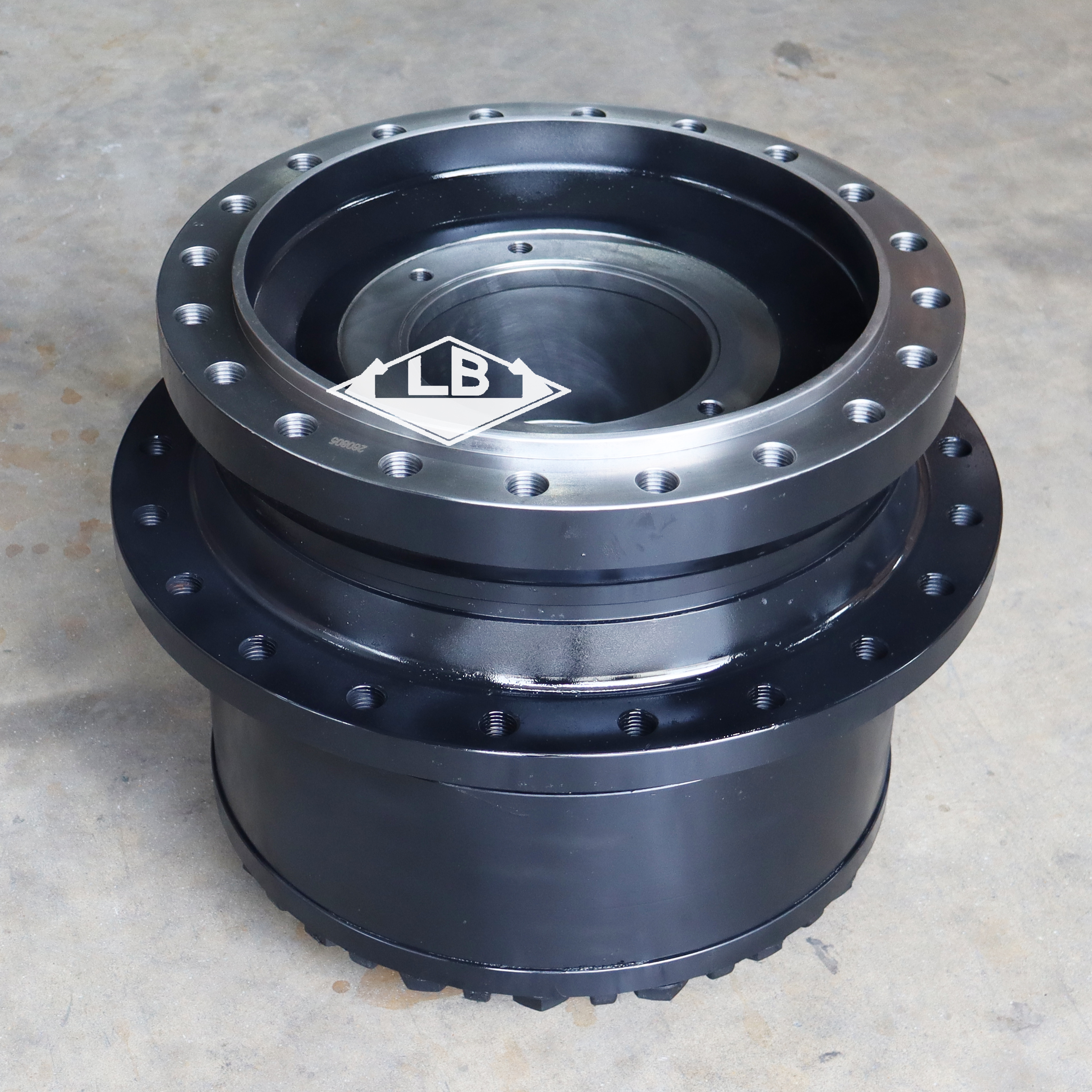

CAT374D 374F 199-4726 513-0837 513-0834 353-0608 Travel gearbox 374D Final Drive 374D FOR CAT EXCAVATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT PARAMETERS

Part name	CAT 374D Travel gearbox
Equipment	Apply to CAT EXCAVATOR
Part no.	199-4726
Frame holes	--
Sprocket holes	--
Item condition	New
Logo	LB
Gross weight	--
MOQ	1 pc

Product Description

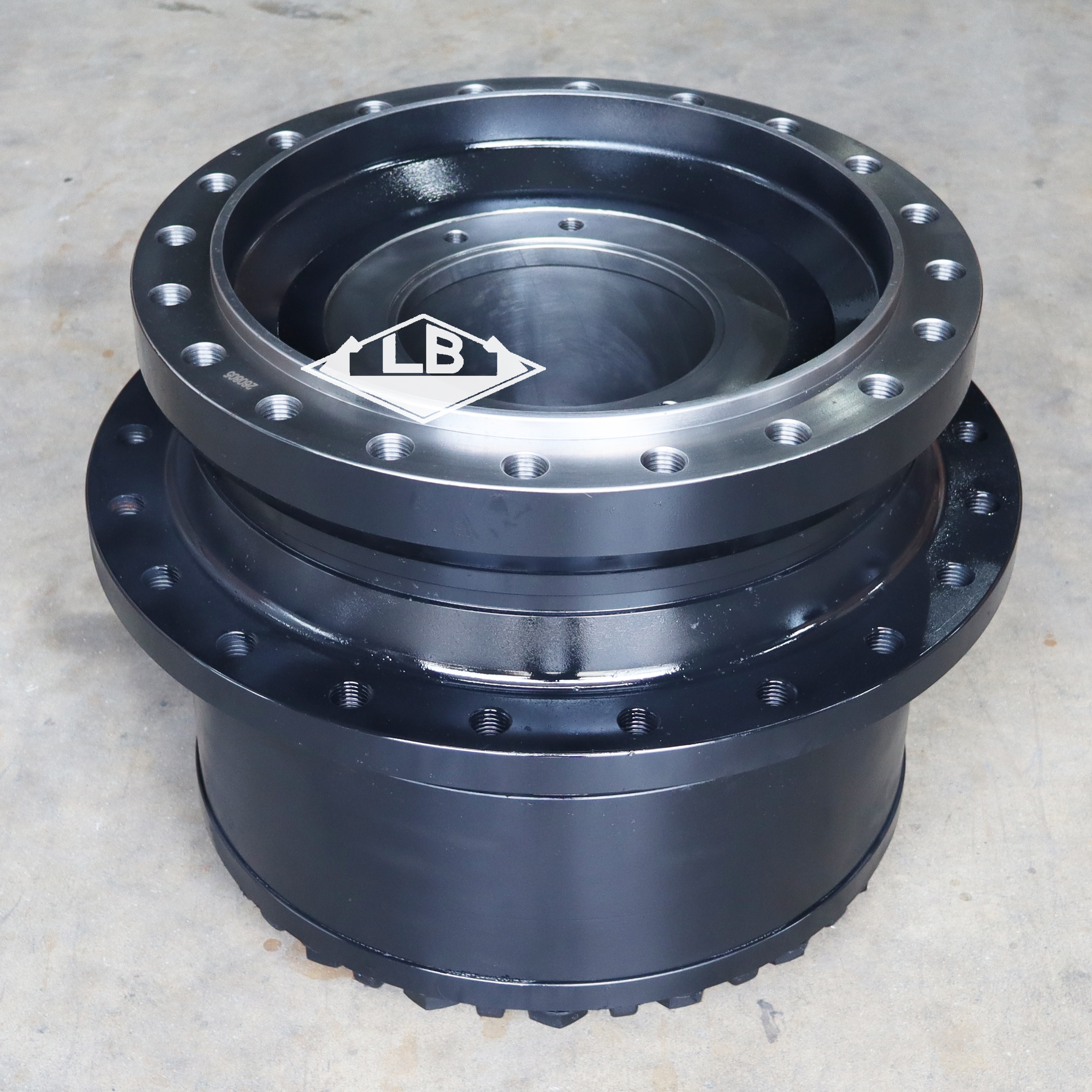

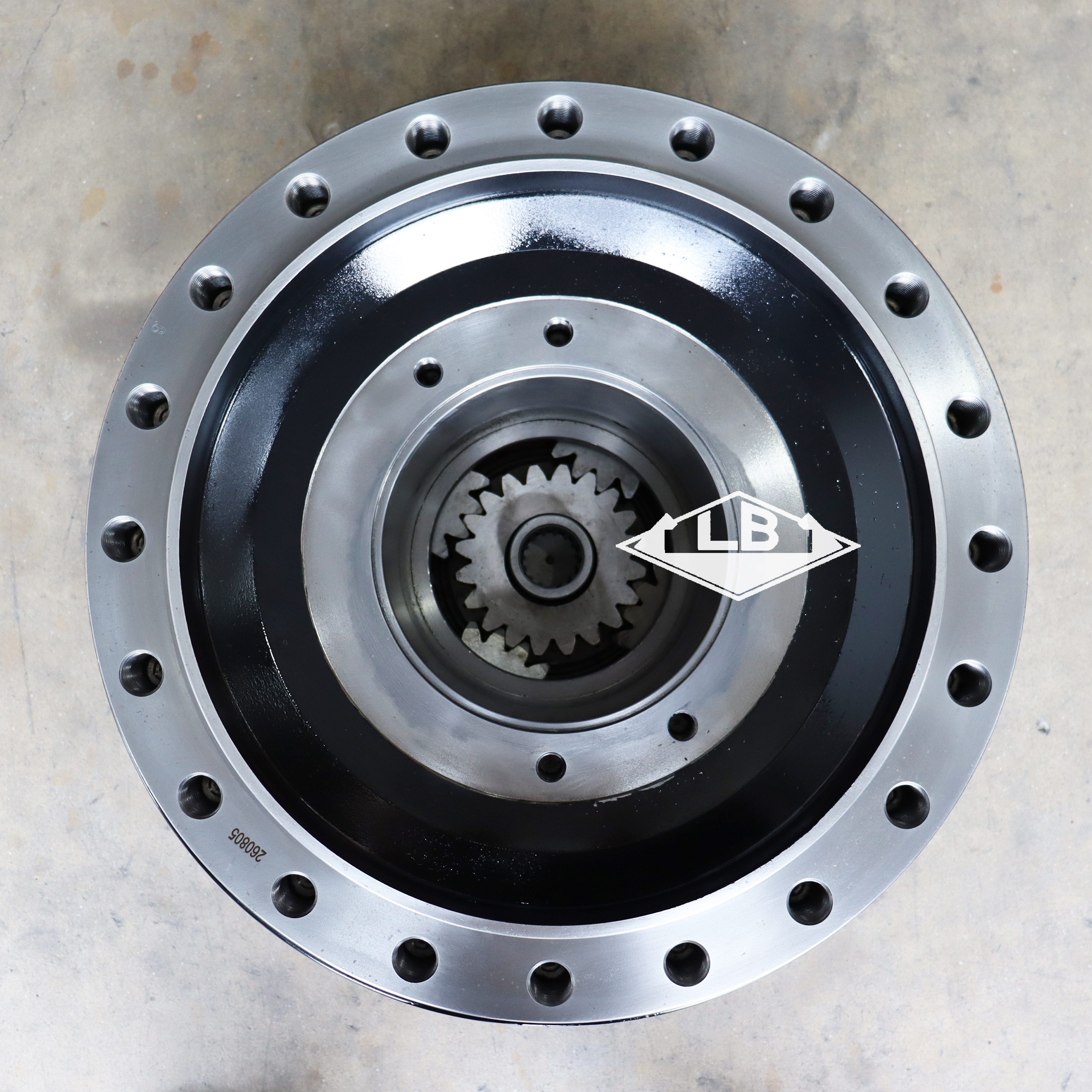

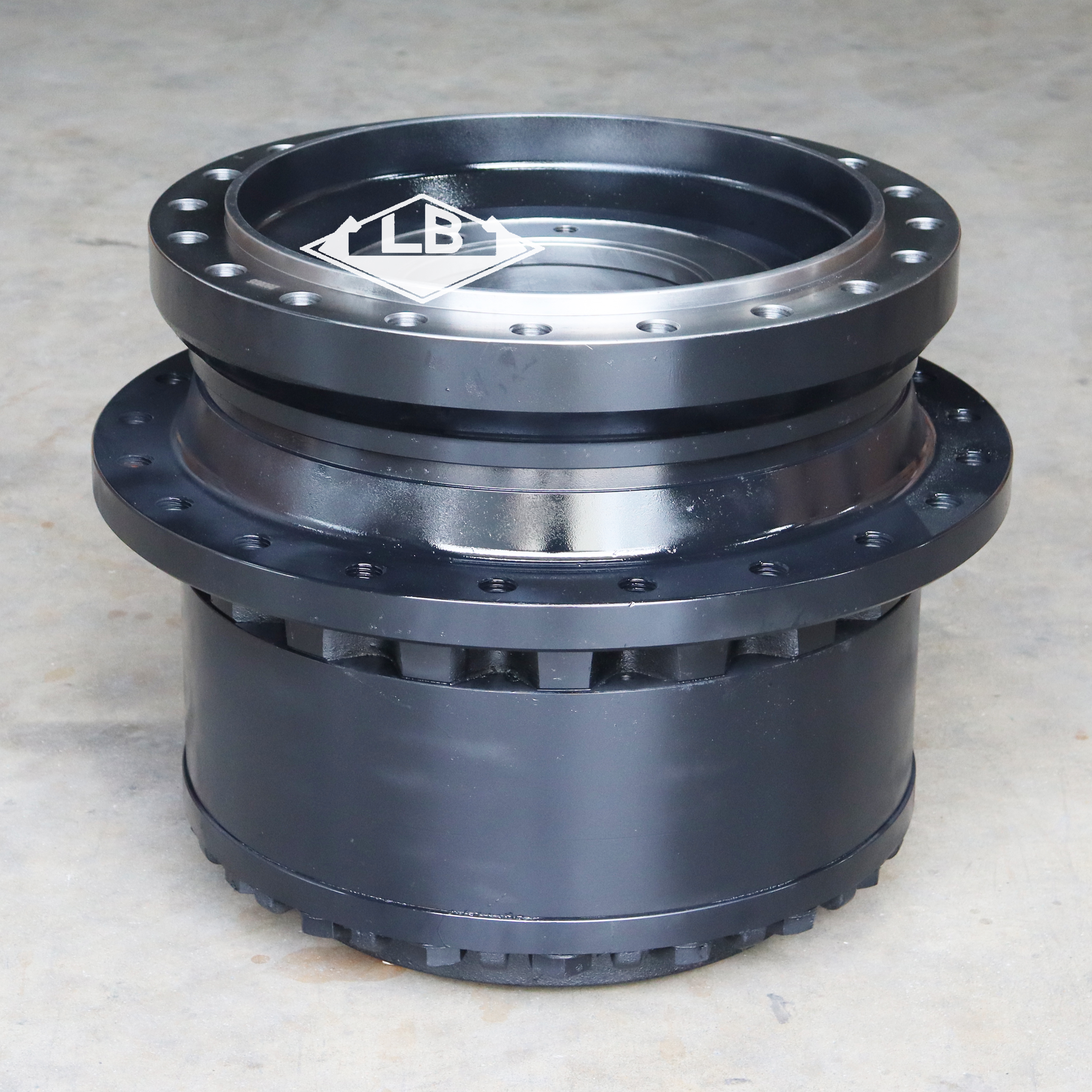

E374D(2) E374D(4) E374D(3) E374D

Parts for your 374D L EXCAVATOR:

Pos.	Part No	Qty	Parts name
1.	199-4727	[1]	HOUSING-MOTOR
2.	214-7880	[1]	SEAL GP-DUO-CONE
	214-7879	[2]	RING-TORIC
3.	163-1657	[2]	CUP-SPECIAL TAPERED
4.	163-1656	[2]	CONE-SPECIAL TAPERED
5.	8C-3411 M	[10]	BOLT (M30X3.5X90-MM)
6.	136-2926	[4]	GEAR-PLANETARY (22-TEETH)
7.	136-2923	[1]	GEAR-SUN (20-TEETH)
8.	7Y-1469	[1]	COUPLING
9.	136-2944	[2]	SPACER (61X95.1X10-MM THK)
10.	136-2948	[6]	PIN-DOWEL
11.	199-4728	[1]	HOUSING (SPROCKET)
12.	136-2959 BJ	[1]	SHIM (0.3-MM THK)
	136-2962 BJ	[1]	SHIM (0.6-MM THK)
	136-2963 BJ	[1]	SHIM (0.7-MM THK)
	136-2964 BJ	[1]	SHIM (0.8-MM THK)
	136-2965 BJ	[1]	SHIM (1-MM THK)
	136-2966 BJ	[1]	SHIM (1.6-MM THK)
17.	136-2949	[1]	GEAR-COUPLING (83-TEETH)
18.	136-2967	[1]	SEAL-O-RING
19.	136-2947	[1]	CARRIER-PLANETARY
20.	136-2945	[1]	SPACER (203X233X8.5-MM THK)
21.	7Y-0667	[1]	RING-RETAINING
22.	136-2930	[1]	CARRIER-PLANETARY
23.	136-2922	[1]	GEAR-SUN (19-TEETH)
24.	136-2927	[1]	GEAR-RING (86-TEETH)
25.	7M-8485	[2]	SEAL-O-RING
26.	3E-2338	[2]	PLUG-PIPE (FINAL DRIVE, OIL DRAIN, FILL)
27.	136-2934	[1]	CARRIER AS
27A.	136-2931	[3]	SHAFT-PLANETARY
28.	136-2943	[1]	RING-RETAINING
29.	136-2921	[1]	GEAR-SUN (22-TEETH)
30.	7Y-1493	[1]	SPACER (8.7X50X14-MM THK)
31.	7Y-0808 B	[1]	SHIM (1.6-MM THK)
32.	136-2946	[3]	BEARING-CAGED
33.	8T-4240	[3]	RING-RETAINING
34.	094-0584	[6]	WASHER (40.3X72X1-MM THK)
35.	136-2924	[3]	GEAR-PLANETARY (31-TEETH)
36.	8T-3957 M	[12]	BOLT-SOCKET HEAD (M12X1.75X30-MM)
37.	136-2920	[1]	COVER
38.	136-2932	[3]	SHAFT-PLANETARY
39.	7Y-5231 M	[18]	BOLT (M30X3.5X260-MM)
40.	9X-8258	[18]	WASHER (33X56X6-MM THK)
41.	136-2925	[3]	GEAR-PLANETARY (23-TEETH)
42.	1U-8846 B		SEALANT-GASKET
43.	136-2928	[1]	GEAR-RING (68-TEETH)
44.	7Y-0912	[11]	BEARING AS-ROLLER
45.	4I-7576	[14]	WASHER (66.3X104X3-MM THK)
46.	099-5194	[7]	PIN-SPRING
47.	136-2933	[4]	SHAFT-PLANETARY
48.	096-3216 M	[2]	SETSCREW-SOCKET (M12X1.75X12-MM)

			AVAILABLE REPAIR KIT(S):
	136-2957 J	[1]	KIT-SHIM (FINAL DRIVE)
	B		USE AS REQUIRED
	J		KIT MARKED J INCLUDES PART(S) MARKED J
	M		METRIC PART
